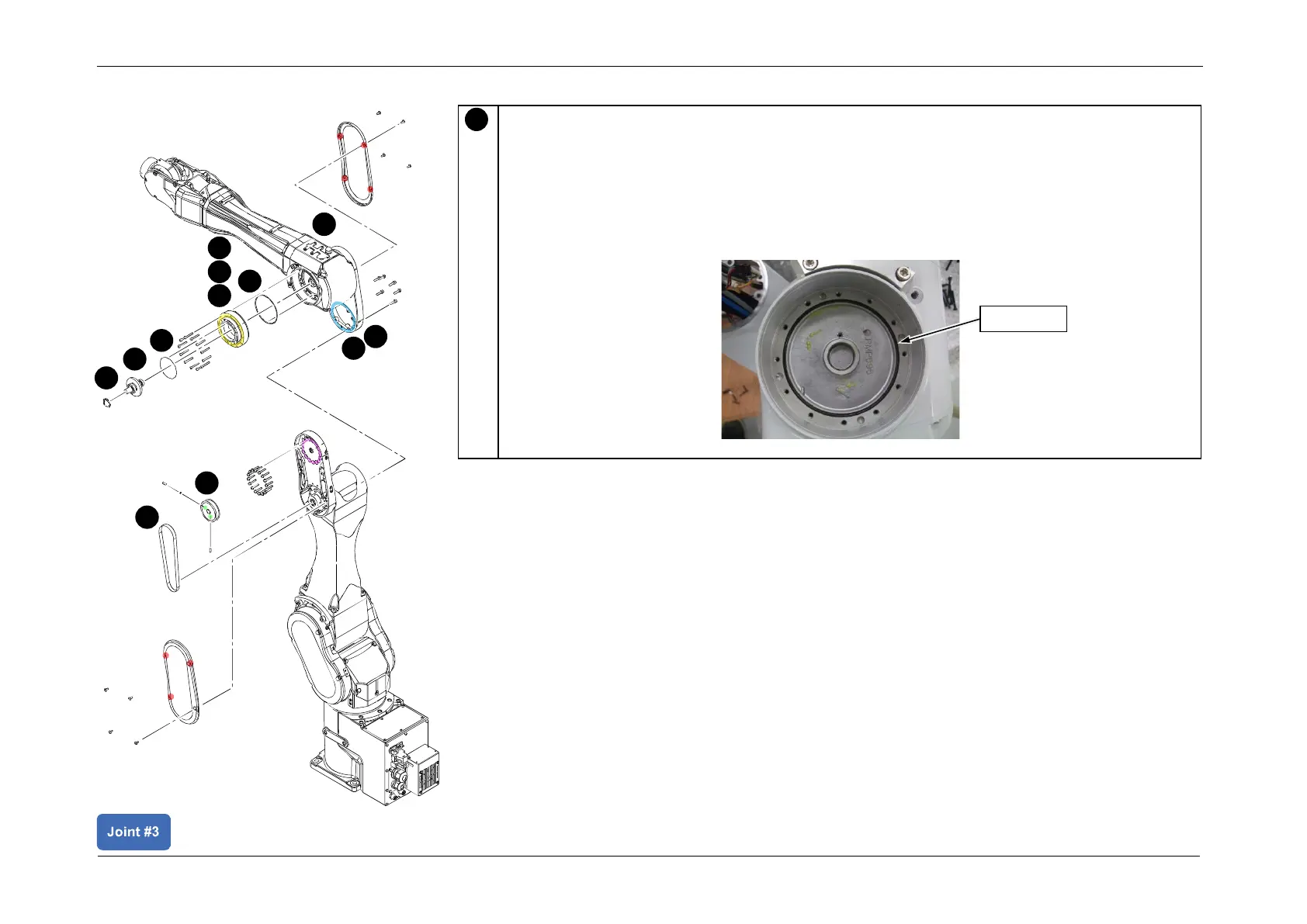

Installing the Reduction Gear
Install the O-ring.
POINT
• Applying a small amount of grease (SK-1A) to the O-ring will make it stick to the arm,
facilitating subsequent work.
• Insert the O-ring firmly into the groove.
• If the O-ring is stretched, damaged, or has deteriorated, replace with a new one.
1
O-ring
