C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-116 Rev.1

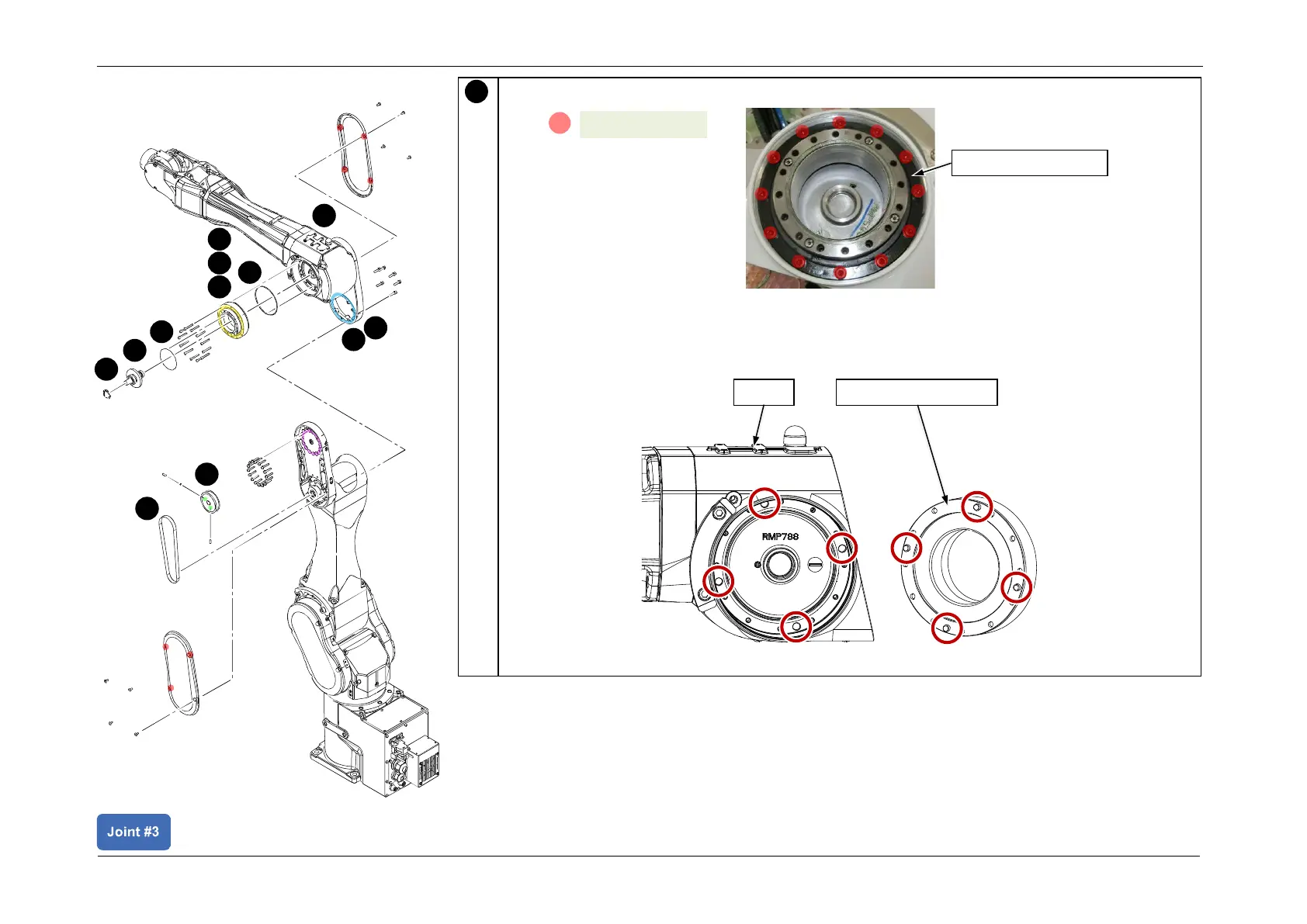

Set the Reduction Gear Unit on Arm3, then secure the fixing bolts temporarily.
POINT
Align the four bolt heads on the bottom of the J3 Reduction Gear Unit with the indentations
on Arm3, and set the Reduction Gear Unit on the arm.
2
Reduction Gear Unit
Arm3
A
S02: 12-M4x30
Reduction Gear Unit
9
11
8
9
10
7
5
4
1
3
2
6
Installing the Reduction Gear
