C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-118 Rev.1

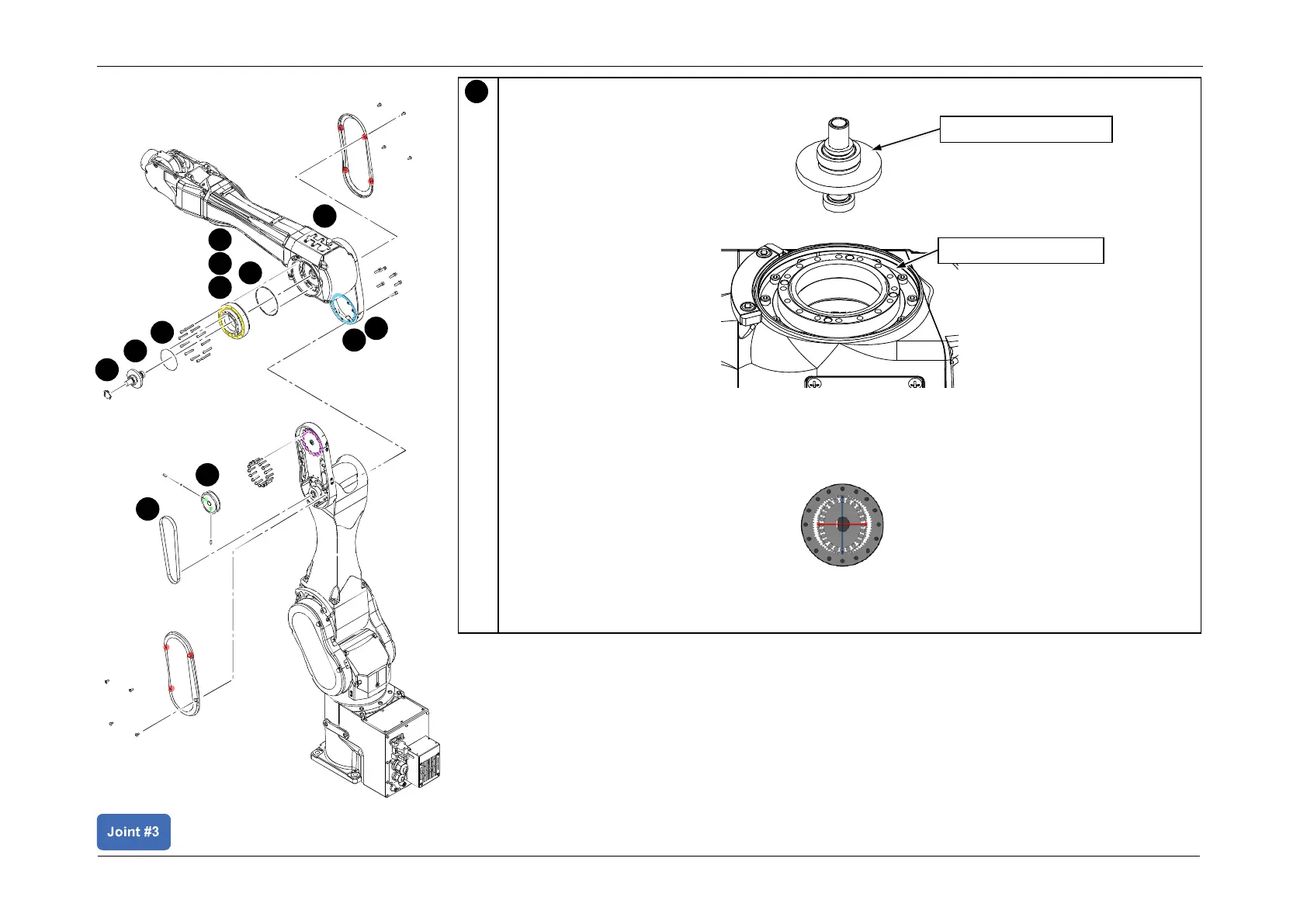

Install the Wave Generator unit.
POINT
Install so that the longside of the Flexspline and the Wave Generator match.
4
Longside
Reduction
Shortside
Reduction Gear Unit
Wave Generator unit
9
11
8
9
10
7
5
4
1
3
2
6
Installing the Reduction Gear
