C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-123 Rev.1

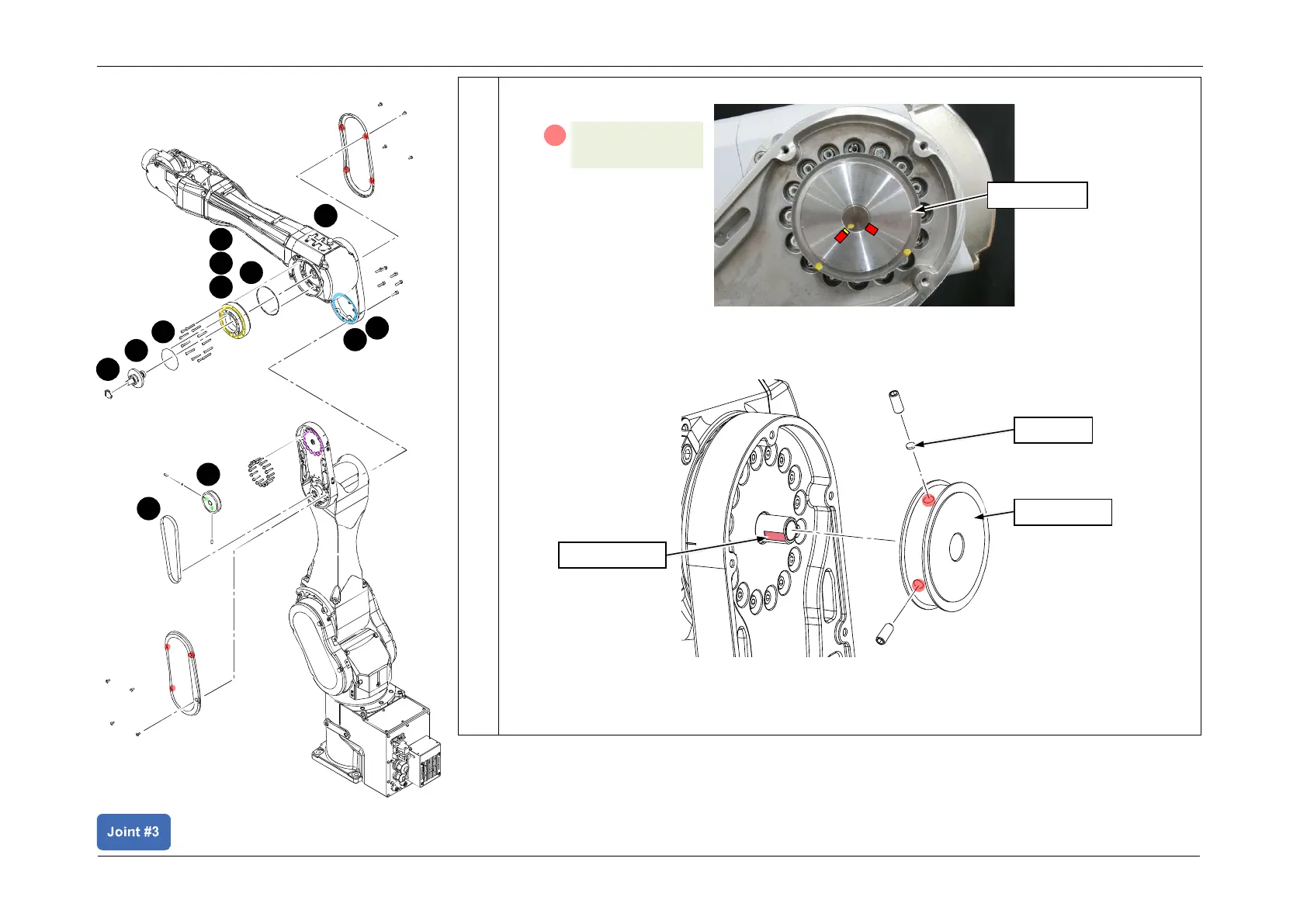

2. Install the J3 pulley 2.
POINT
Align the shaft D-cut surface with the screw holes, and install the J3 pulley 2.
CAUTION
If the screw positions are incorrect or the bushing is not set, this may cause damage on
the side, and may result in the part being unable to be removed.
J3 pulley 2
Bushing
D-cut surface
J3 pulley 2
S05: 2-M5x12
(4.0 +/- 0.2 N⋅m)
A
9
11
8
9
10
7
5
4
1
3
2
6
Installing the Reduction Gear
