C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-127 Rev.1

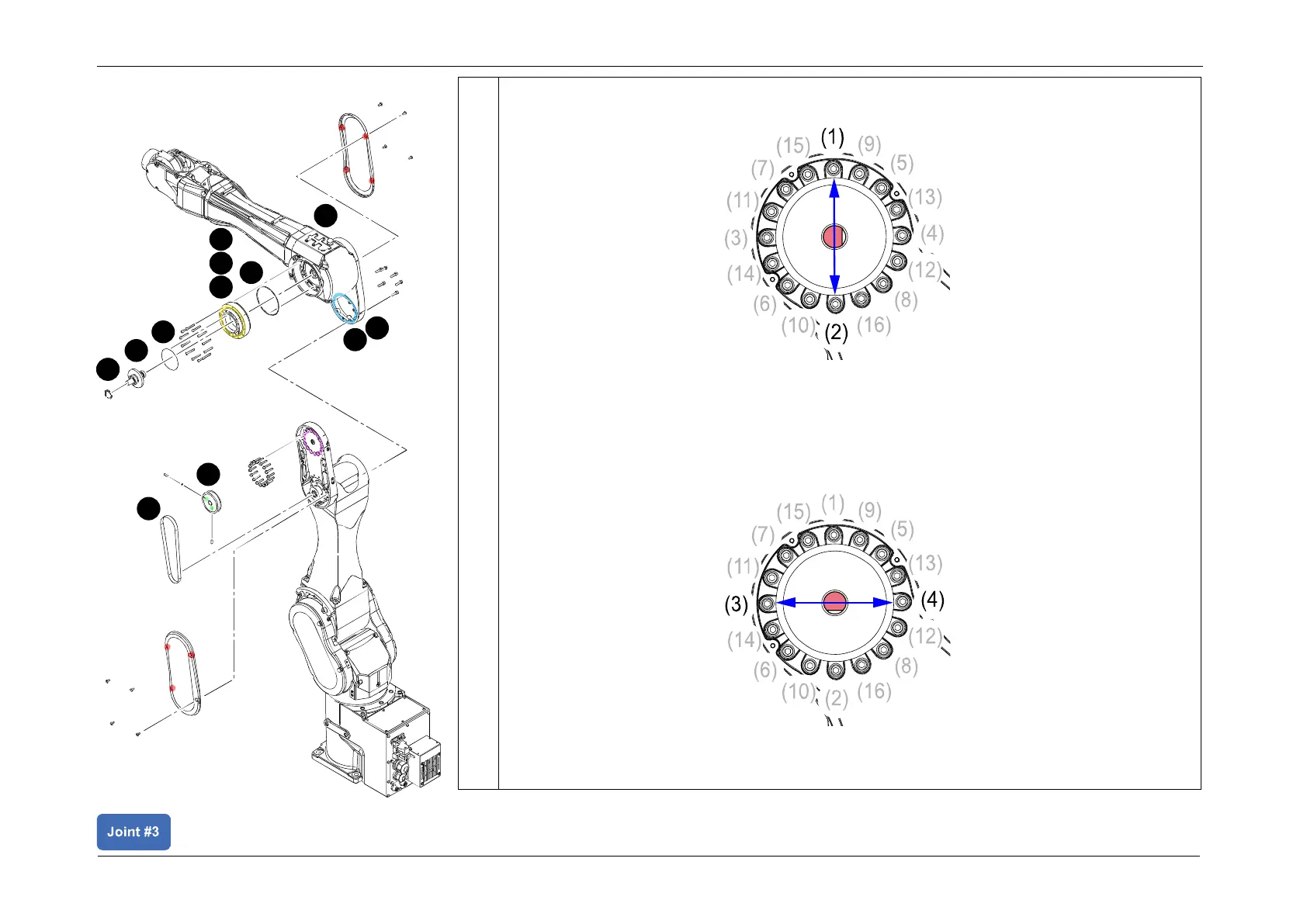

7. Rotate pulley 2 so that the shaft D-cut is in the position shown in the figure.
8. Tighten screws (1) and (2) to 80% of the torque value.
9. Tighten screws (1) and (2) to 100% of the torque value.
10. Rotate pulley 2 so that the shaft D-cut is in the position shown in the figure.
11. Tighten screws (3) and (4) to 80% of the torque value.
12. Tighten screws (3) and (4) to 100% of the torque value.
9
11
8
9
10
7
5
4
1
3
2
6
Installing the Reduction Gear
