C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-128 Rev.1

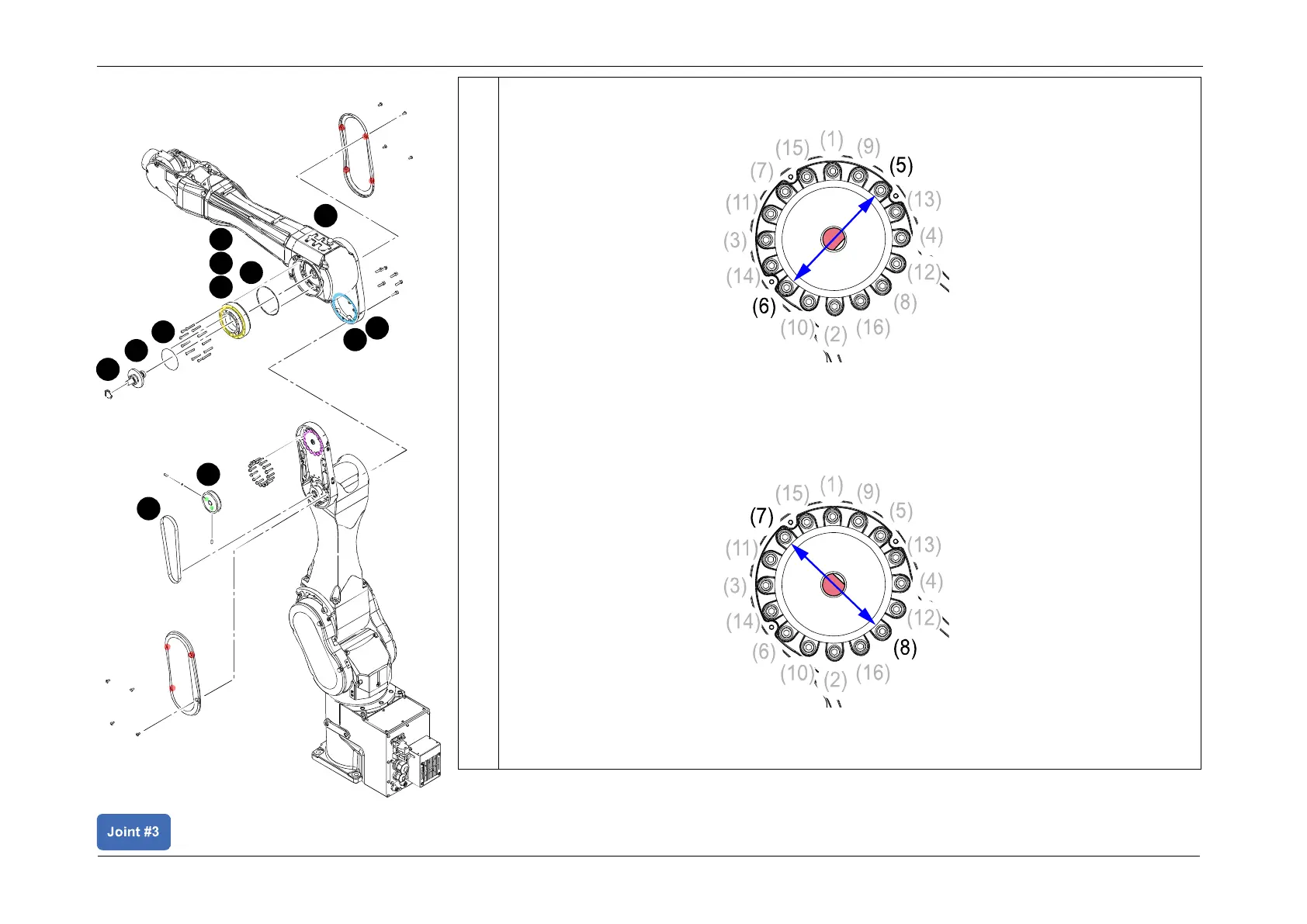

13. Rotate pulley 2 so that the shaft D-cut is in the position shown in the figure.
14. Tighten screws (5) and (6) to 40% and then 100% torque values.
15. Rotate pulley 2 so that the shaft D-cut is in the position shown in the figure.
16. Tighten screws (7) and (8) to 40% and then 100% torque values.
9
11
8
9
10
7
5
4
1
3
2
6
Installing the Reduction Gear
