C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-129 Rev.1

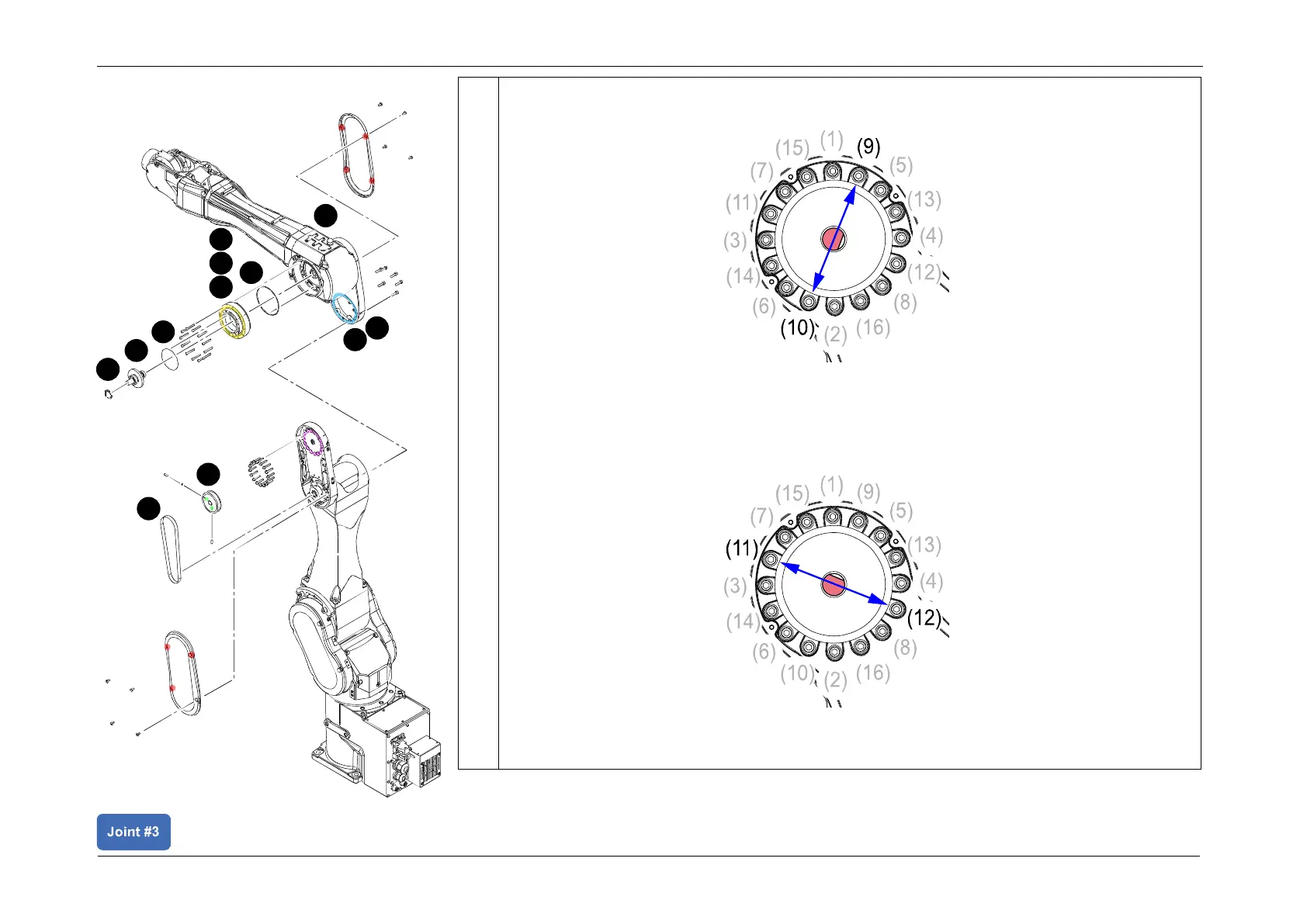

17. Rotate pulley 2 so that the shaft D-cut is in the position shown in the figure.
18. Tighten screws (9) and (10) to 40% and then 100% torque values.
19. Rotate pulley 2 so that the shaft D-cut is in the position shown in the figure.
20. Tighten screws (11) and (12) to 40% and then 100% torque values.
9
11
8
9
10
7
5
4
1
3
2
6
Installing the Reduction Gear
