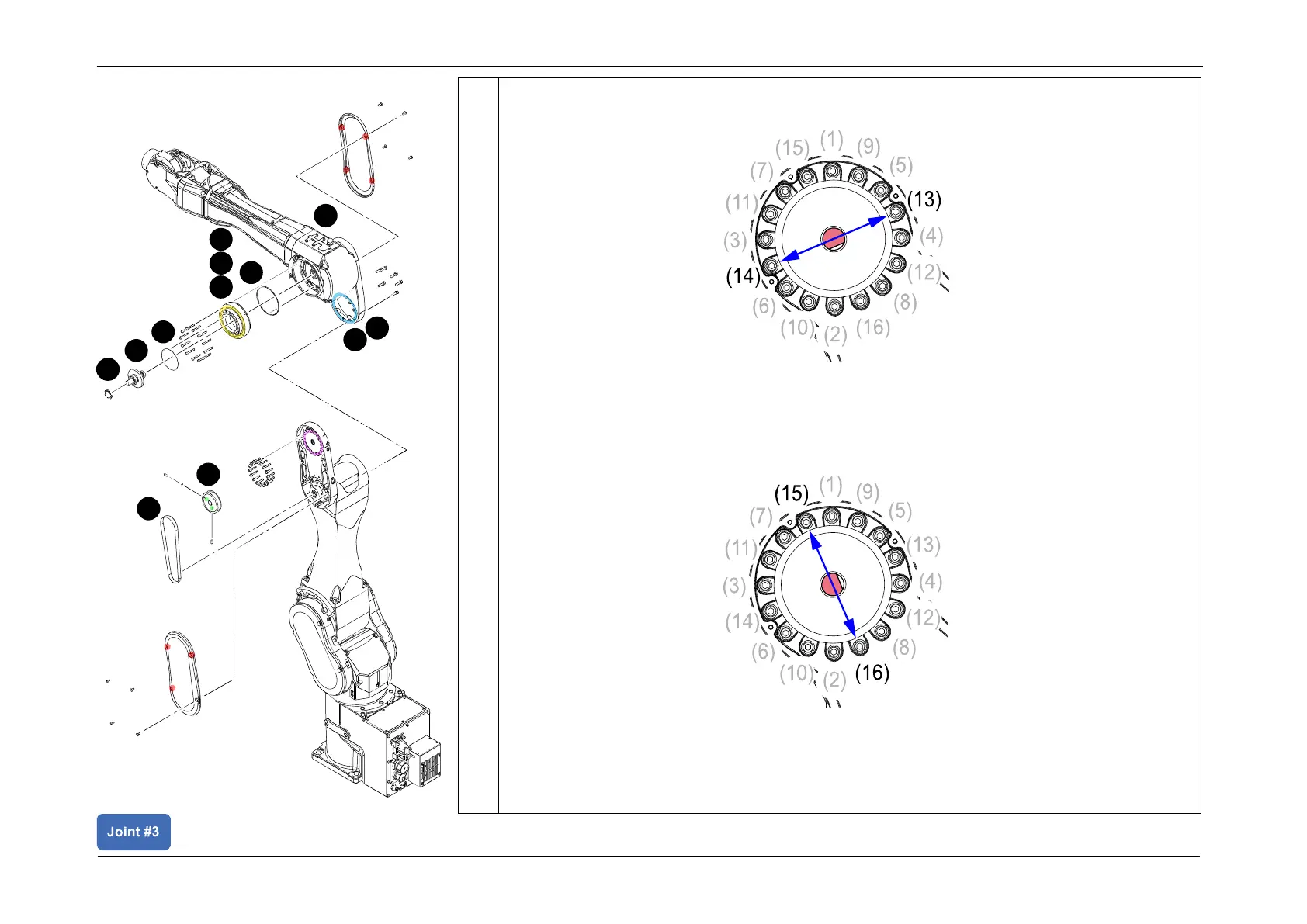

21. Rotate pulley 2 so that the shaft D-cut is in the position shown in the figure.
22. Tighten screws (13) and (14) to 40% and then 100% torque values.
23. Rotate pulley 2 so that the shaft D-cut is in the position shown in the figure.
24. Tighten screws (15) and (16) to 40% and then 100% torque values.
POINT
After securing the arm, manually move the arm to check that there is no rattling or
misalignment of the Reduction Gear.
9
11
8
9
10
7
5
4
1
3
2
6
Installing the Reduction Gear
