C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-131 Rev.1

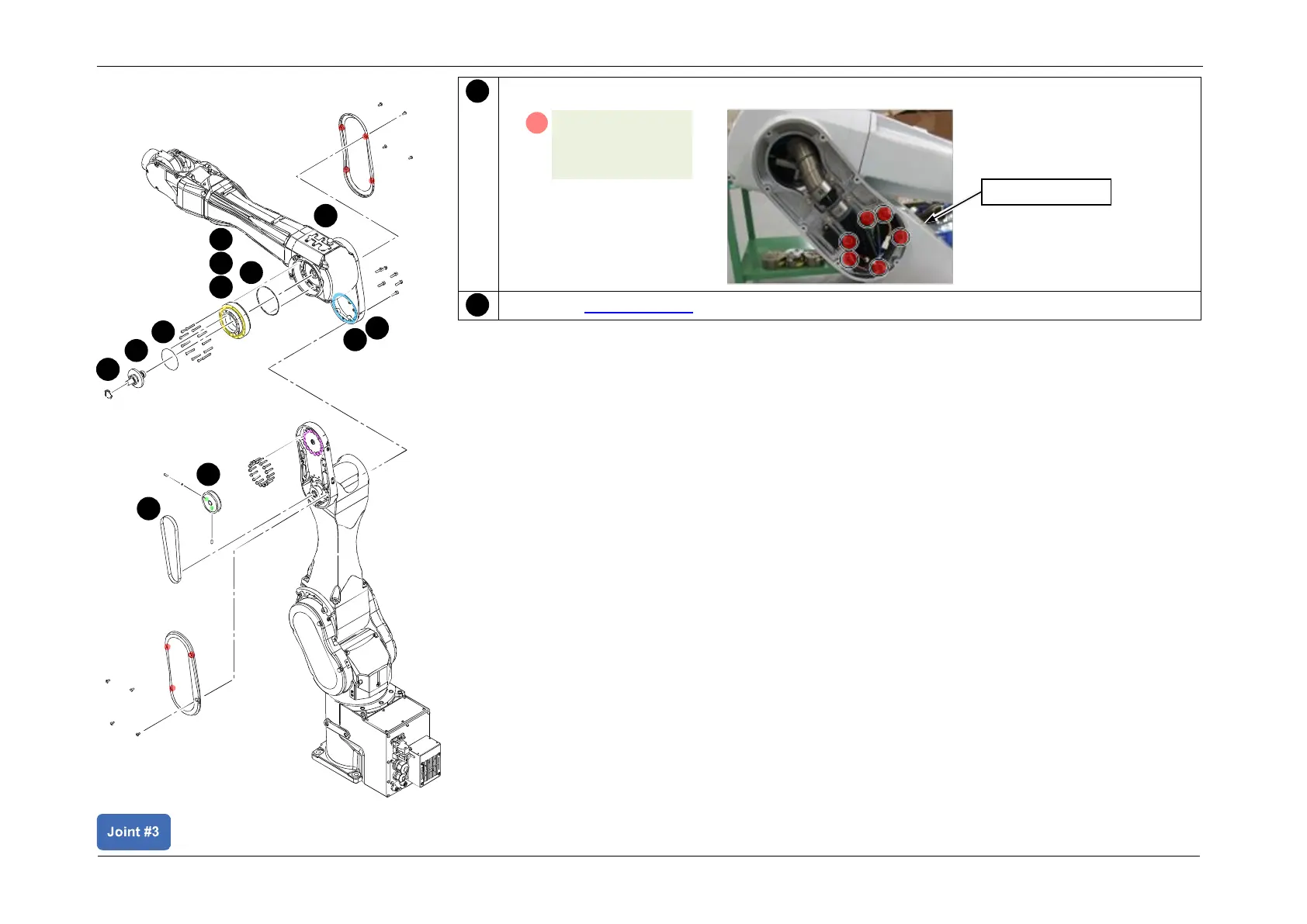

Fully tighten the Arm2 side arm screws temporarily secured in step .
Install the J3 Timing Belt.
10
Arm2 side arm
A
S02: 6-M5x20
and washer
(10.0 +/- 0.5 N⋅m)
11
9
11
8
9
10
7
5
4
1
3
2
6
Installing the Reduction Gear
