C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-138 Rev.1

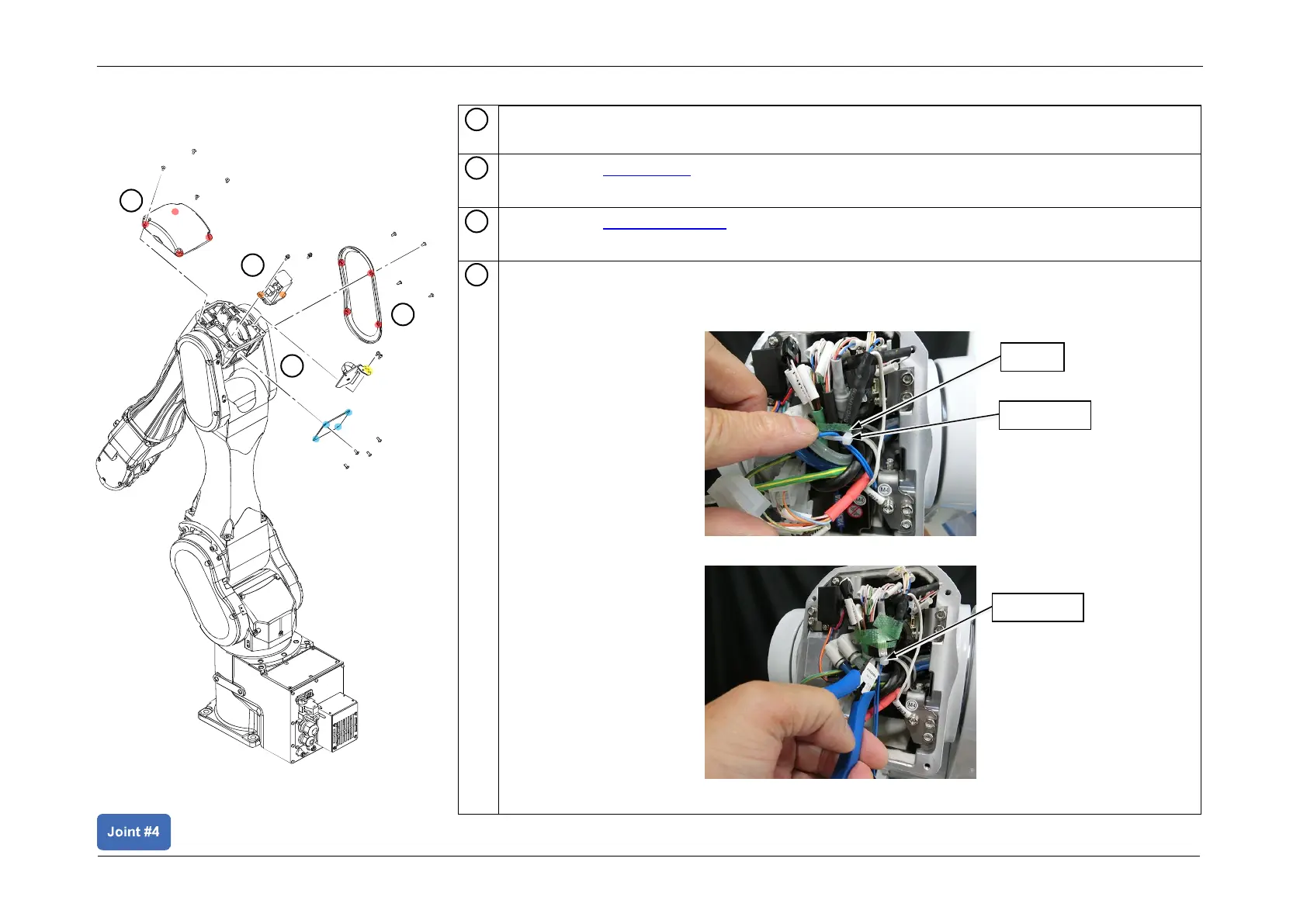

Removing the Motor Unit
Turn OFF the Controller.
Remove the Arm3 cover.
Remove the Arm2 side cover (both sides).
Disconnect the J4 Motor Connectors (CN141, CN341, CN440).
1. Using a marker pen or tape, mark all of the cables bound with the wire tie as shown in
the figure.
2. Cut the wire tie.
3. Remove the connectors (CN440, CN141, CN341).
1
2
3
4
Wire tie
Wire tie
Tape
2
4
5
3
