C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-139 Rev.1

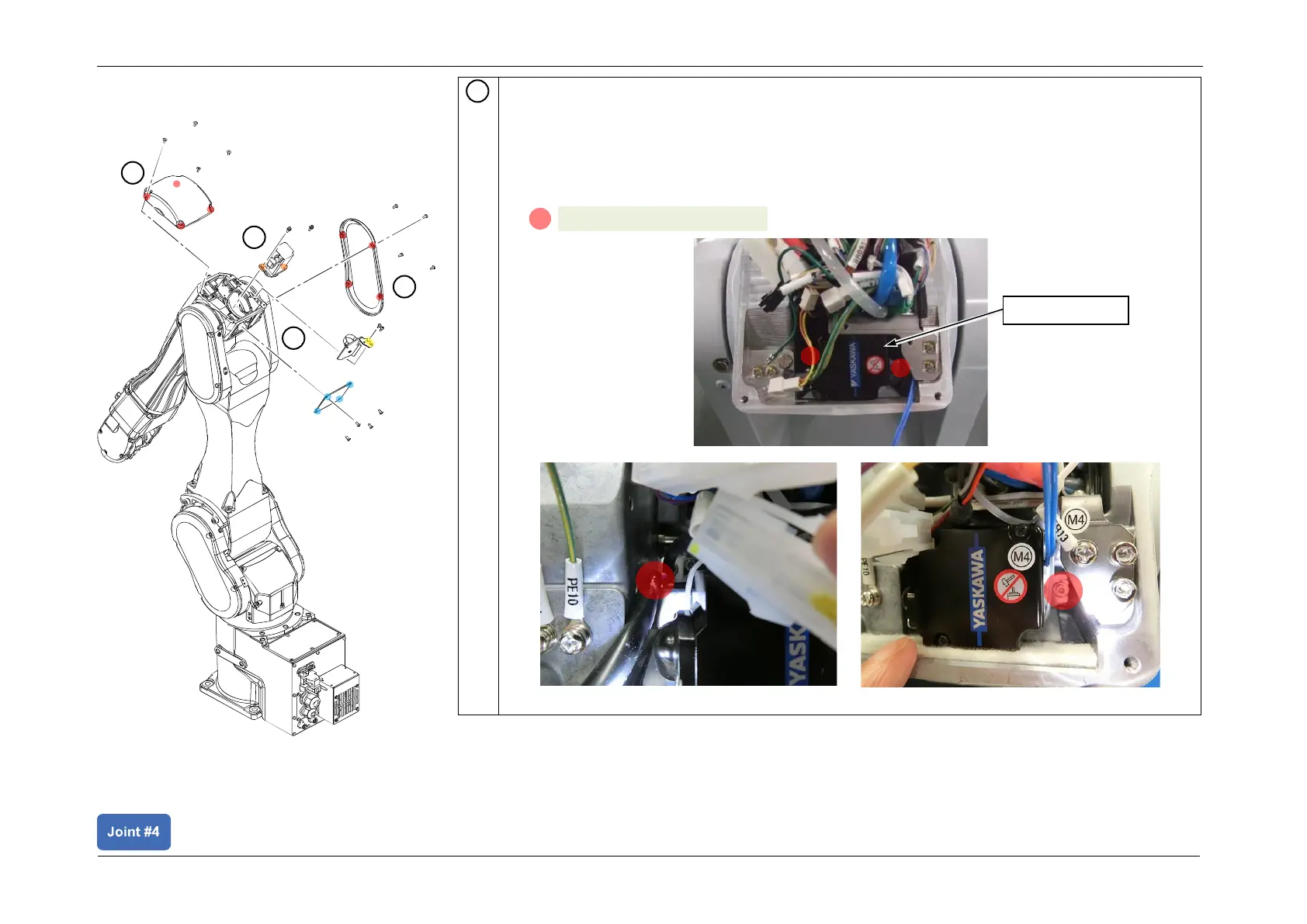

Remove the screws securing the J4 Motor Plate, and remove the J4 Motor unit from Arm3.
POINT
• The J4 Motor Plate screws are at a position approximately 120 mm in.
• Remove the screws securing the Motor Plate to the arm as shown in the figure. Take
care not to remove the screws securing the motor itself to the Motor Plate.
5
S01: 2-M4x15 and washer
A
J4 Motor unit
2
4
5
3
Removing the Motor Unit
