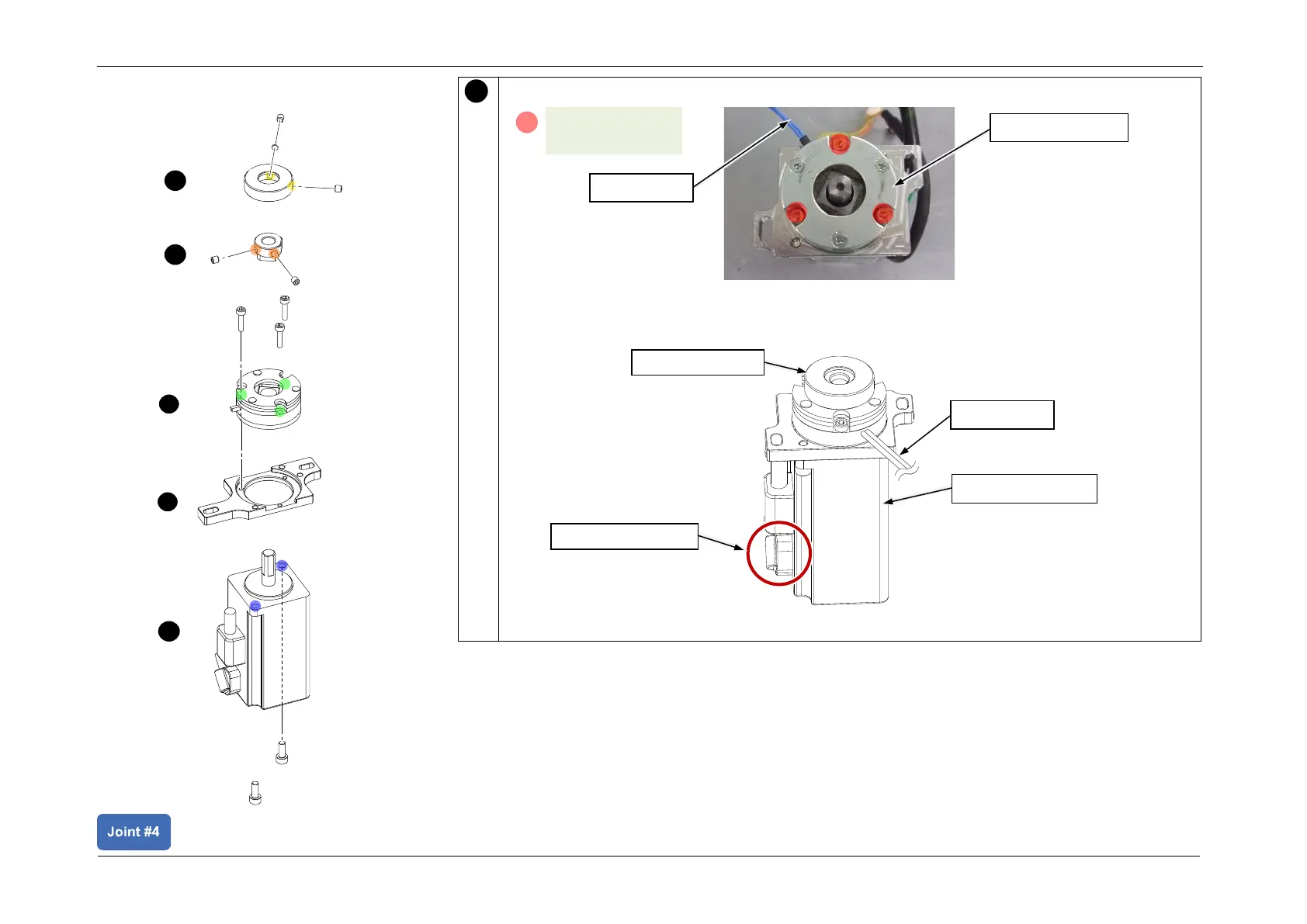

Install the J4 brake.
POINT
Install with the orientation shown in the figure.
2
J4 brake
J4 Motor
Motor cable
Brake cable
Brake cable
S01: 3-M3x13
(2.0 +/- 0.1 N⋅m)
A
J4 brake
1
2
3
4
5
Motor Unit Assembly
