Motor Unit Assembly

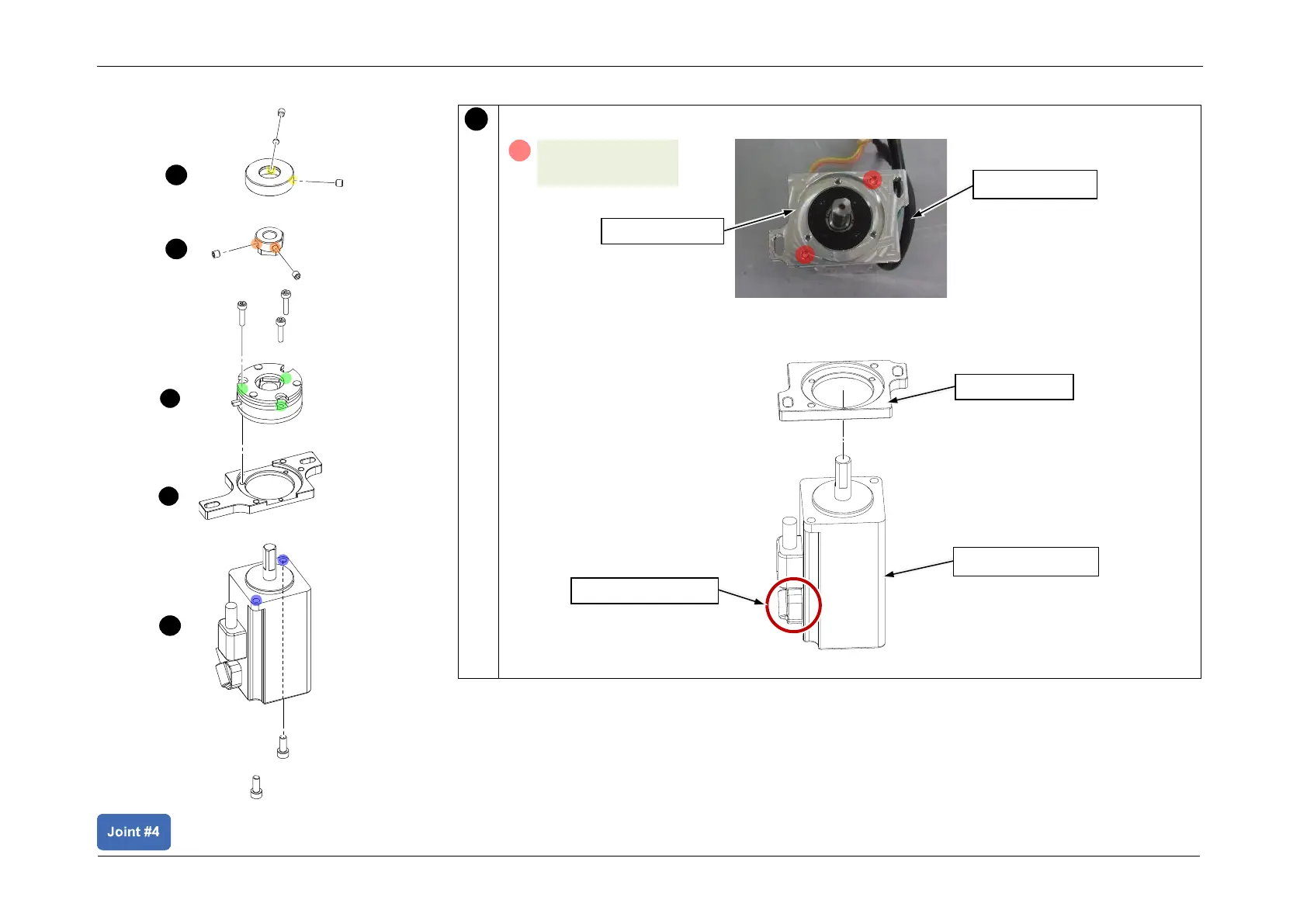

Install the Motor Plate.
POINT
Install with the orientation shown in the figure.
1
Motor Plate
J4 Motor
Motor cable
Motor cable
S01: 2-M4x10
(4.0 +/- 0.2 N⋅m)
A
Motor Plate
1
2
3
4
5
