Installing the Motor Unit

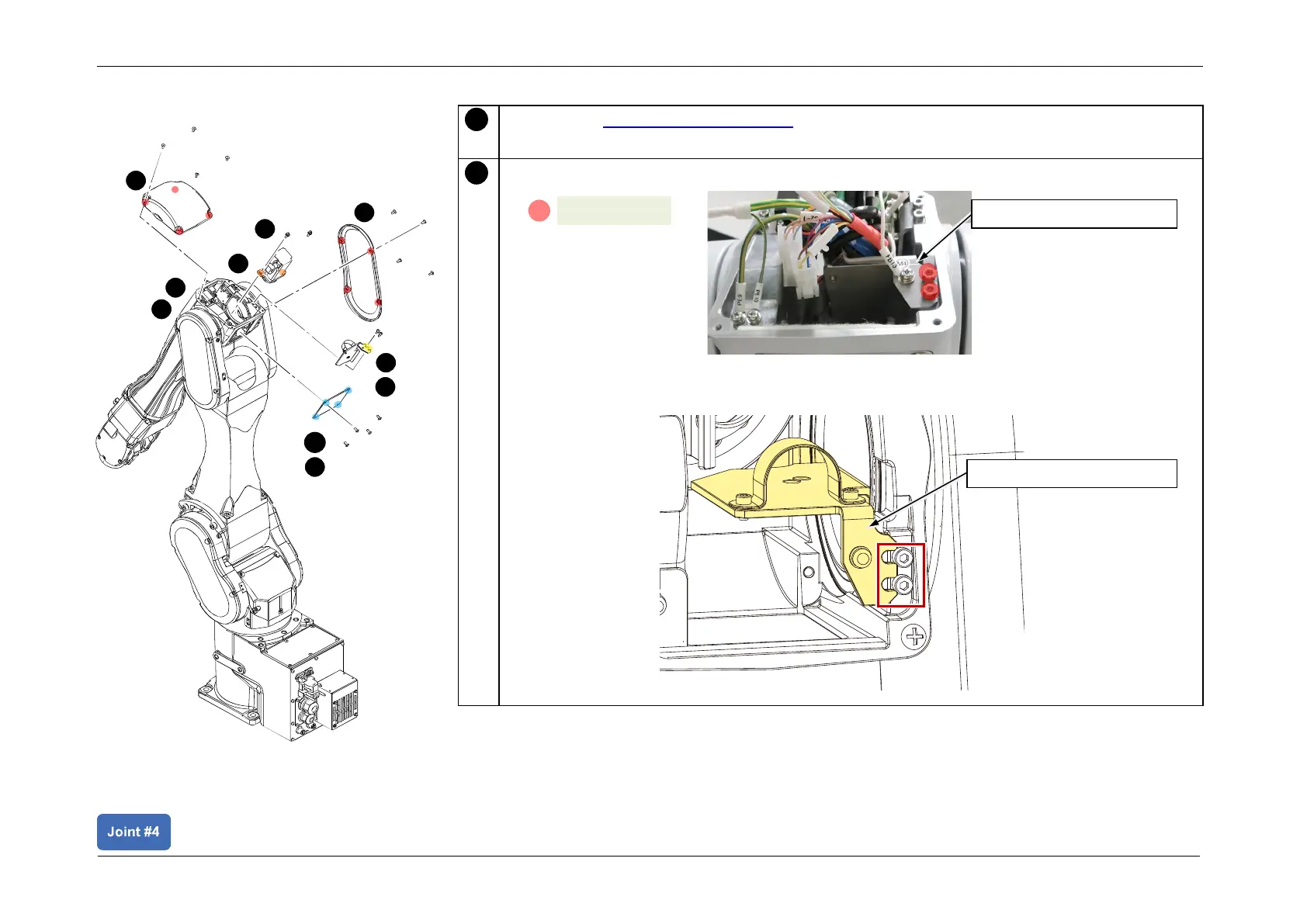

Remove the Arm3 maintenance cover.
Loosen the screws on the Arm3 cable fixing plate 1, and remove the plate.
POINT
Slide the cutout section on the Arm3 cable fixing plate 1.
1
2
Arm3 cable fixing plate 1
S01: 2-M4x10
A
Arm3 cable fixing plate 1
