C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-151 Rev.1

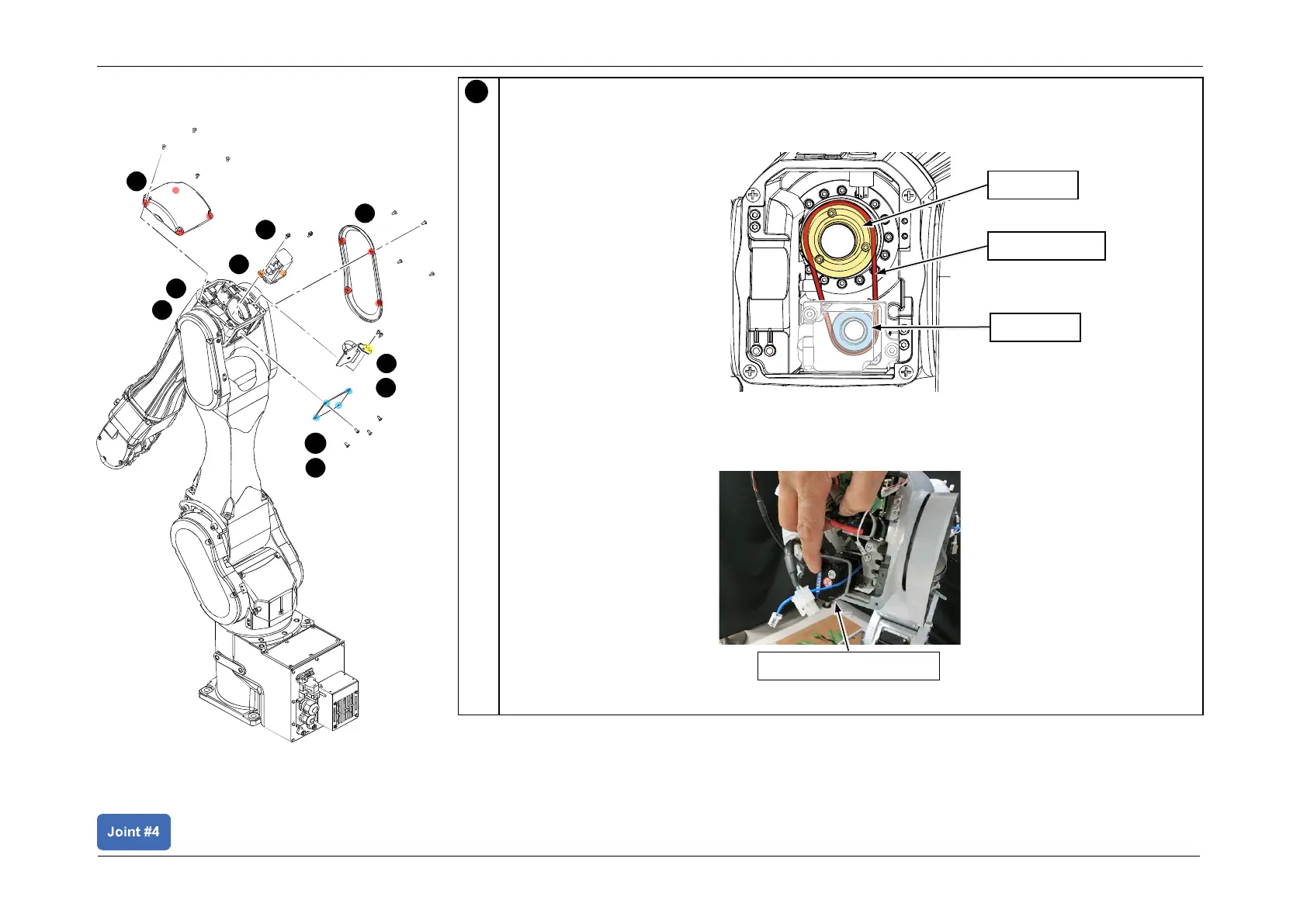

Install the J4 Motor unit.
Refer to the figure below for each part name.
1. With the Timing Belt correctly engaged with pulley 2, insert the J4 Motor into the arm
while lifting the Arm3 cable fixing plate 1.
3
J4 Motor unit
Timing Belt
Pulley 2
Pulley 1
6
7
5
4
3
2
1
8
9
10
Installing the Motor Unit
