C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-152 Rev.1
POINT

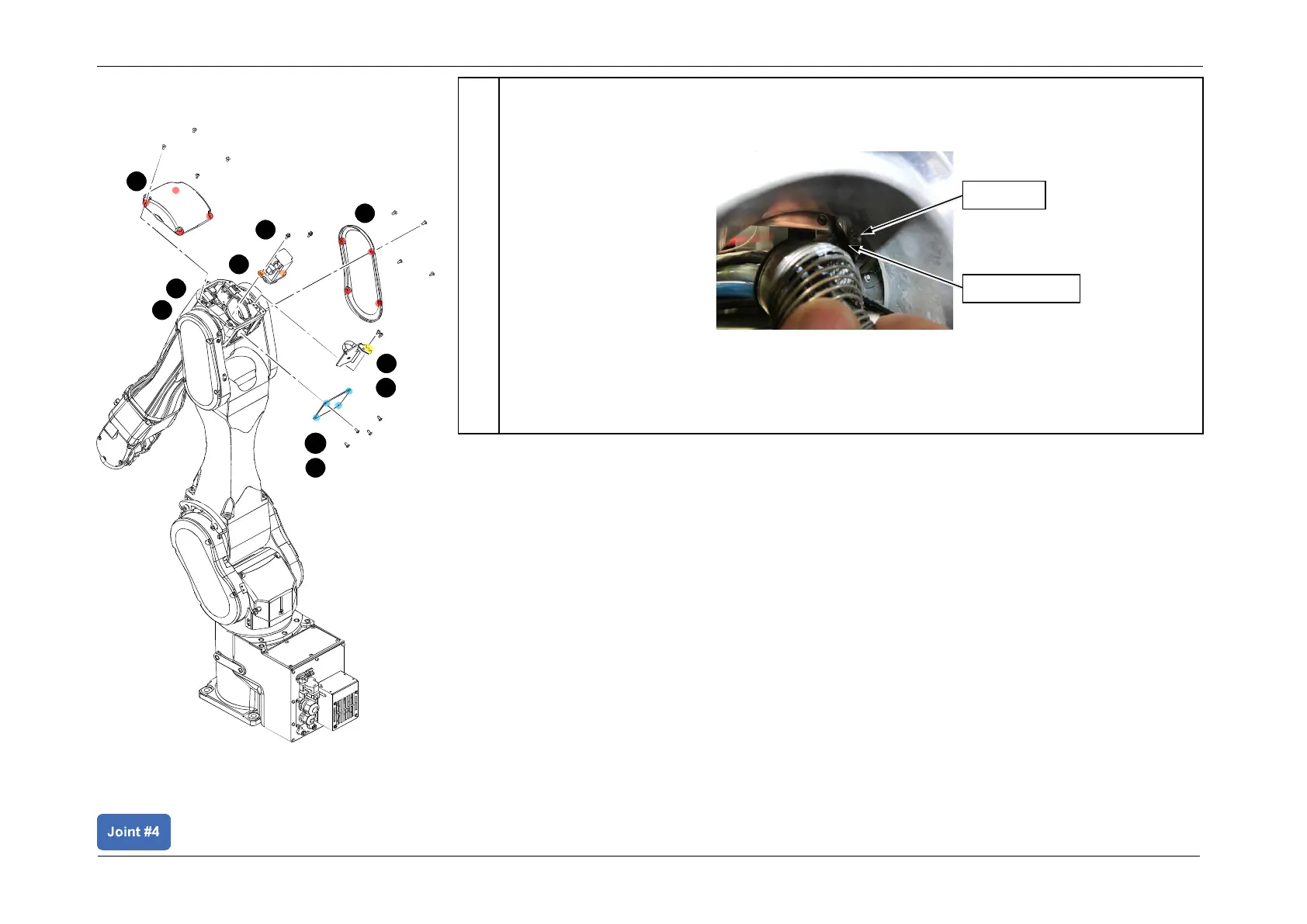

The Timing Belt may not be engaged with pulley 2, as shown in the figure. Check that it is
correctly engaged with pulley 2.
2. Set the Timing Belt on pulley 1.
POINT
Adjustment of the position of the J4 Motor up or down when setting the Timing Belt on
pulley 1 can be easily performed from the Arm3 maintenance cover side.
Timing Belt
Pulley 2
6
7
5
4
3
2
1
8
9
10
Installing the Motor Unit
