C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-155 Rev.1

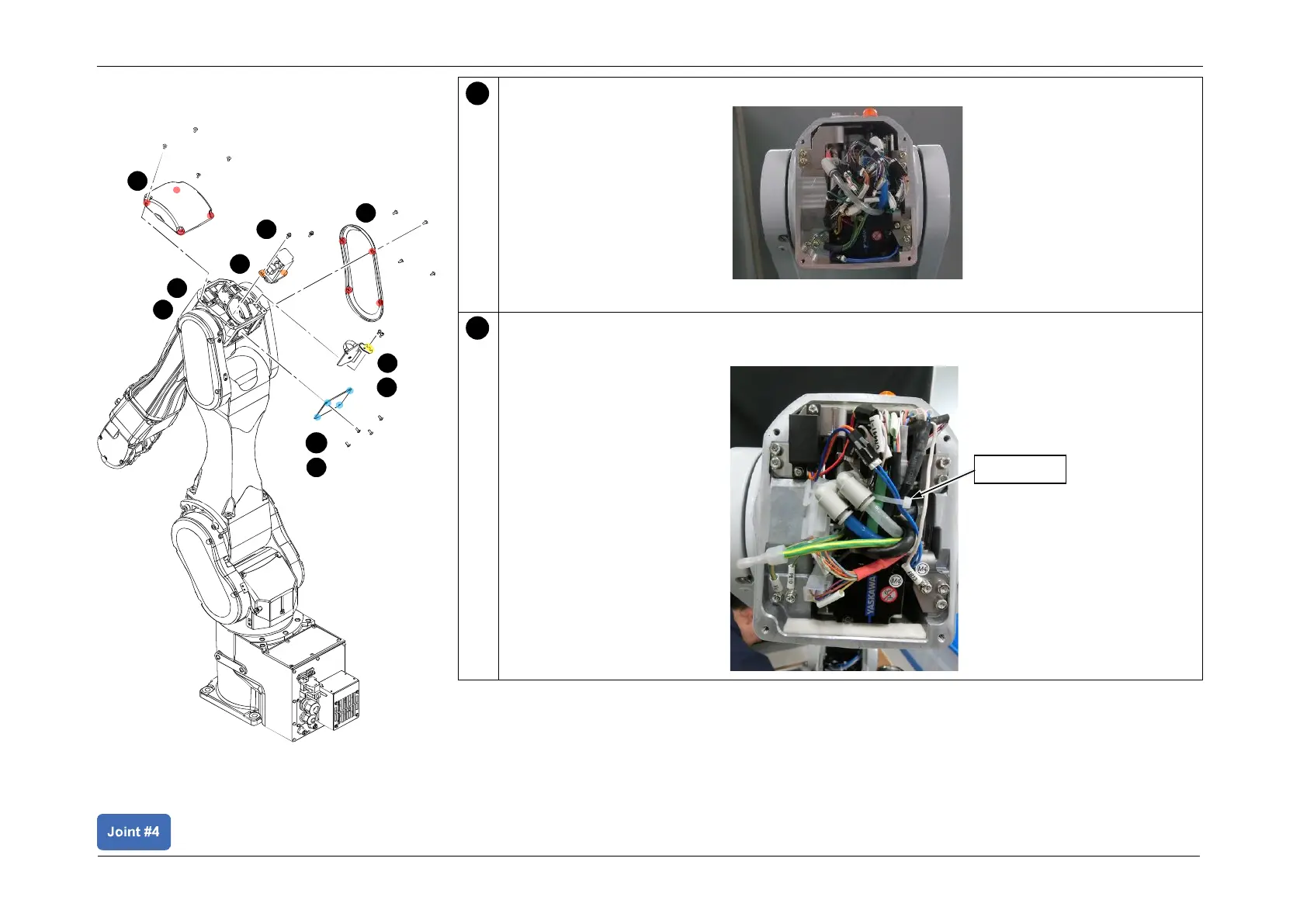

Connect the J4 Motor Connectors (CN141, CN341, CN440).
Bind the following connector cables using the wire tie (AB200).
CN341, CN592, CN522, CN521, CN203, LED, CN441, CN440
6
7
Wire tie
6
7
5
4
3
2
1
8
9
10
Installing the Motor Unit
