C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-154 Rev.1

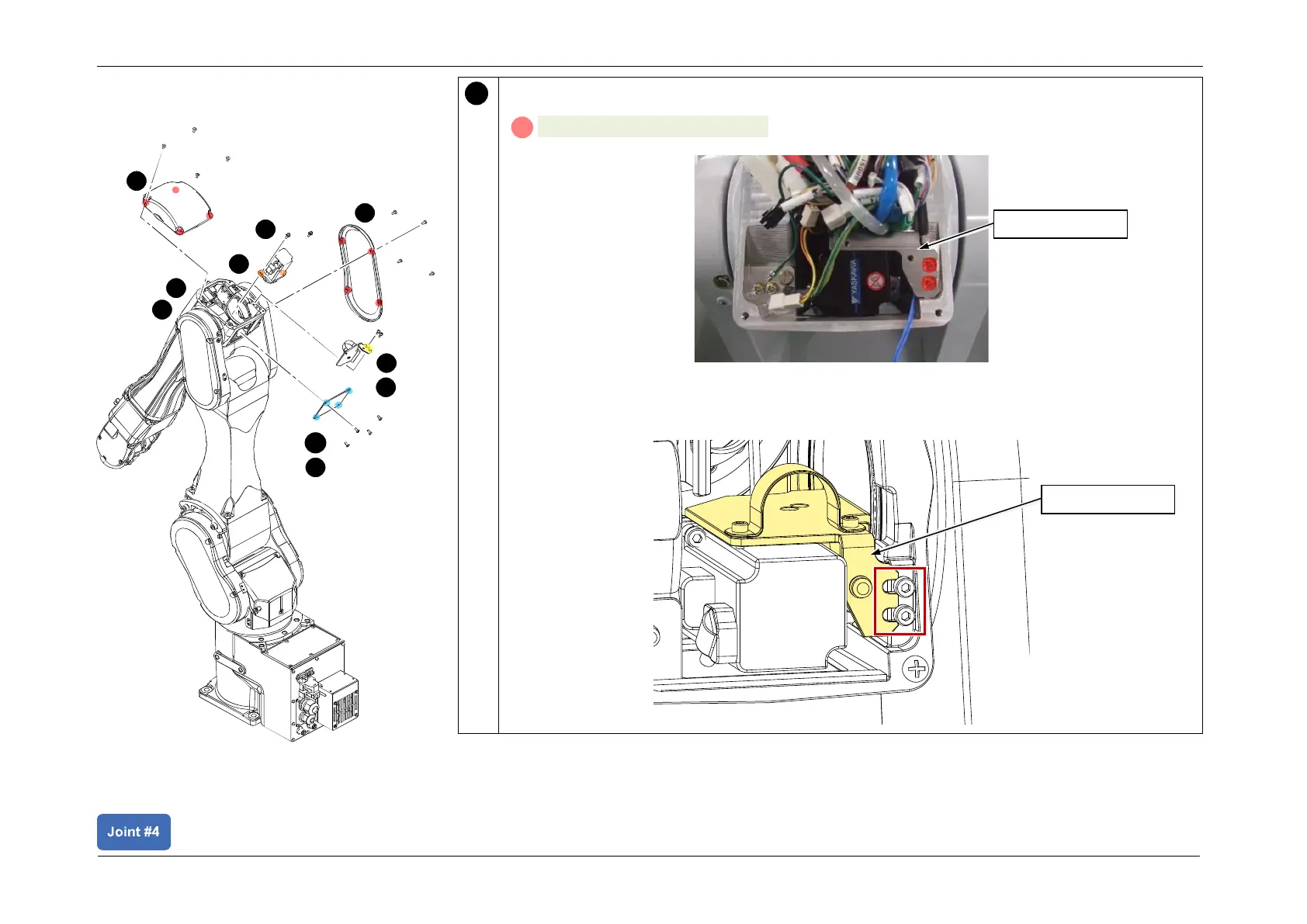

Secure the cable fixing plate to Arm3.
POINT
Slide the cutout section on the cable fixing plate, and secure with screws.
5
Cable fixing plate
Cable fixing plate
S01: 2-M4x10 (4.0 +/- 0.2 N⋅m)
A
6
7
5
4
3
2
1
8
9
10
Installing the Motor Unit
