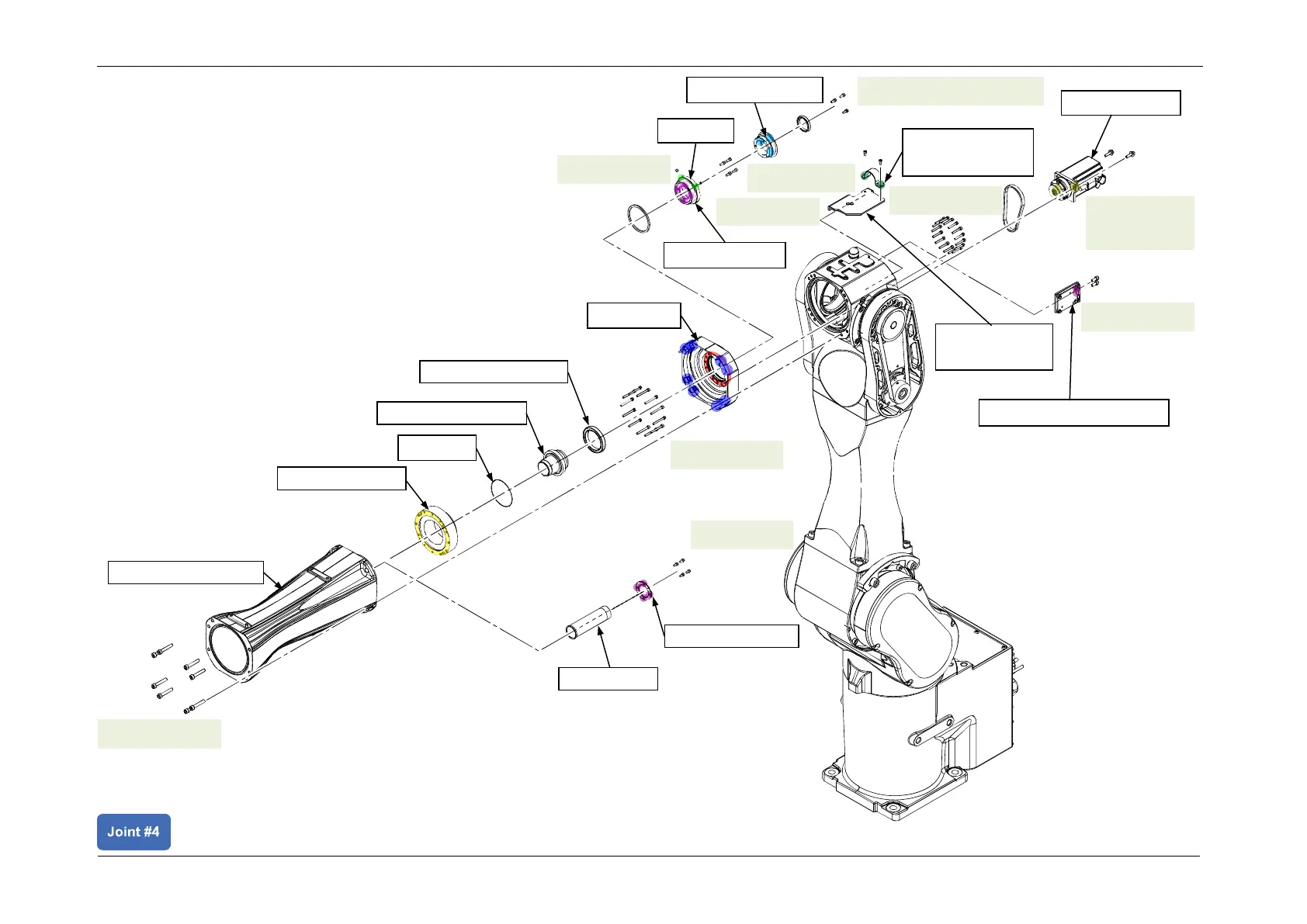

Wave Generator
Pulley spacer
Flexspline
J4 pulley bearing
J4 sleeve holder
J4 flange
Pulley
J4 Reduction Gear
J4 sleeve
Arm4 extension part
O-ring
S01: 3-M3x8 and washer
S01: 4-M3x6
S01: 4-M3x8
S05: 2-M4x4
S01: 12-M3x28
S01: 8-M5x30
S02: 16-M3x20
Gyro board 2 fixing plate
J4 Motor unit
Arm #3 cable
bracket (C3B)
Arm #3 cable
fixing plate 1
S01: 2-M4x10
S01: 2-M4x15
and washer
S01: 2-M3x6
