C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-165 Rev.1

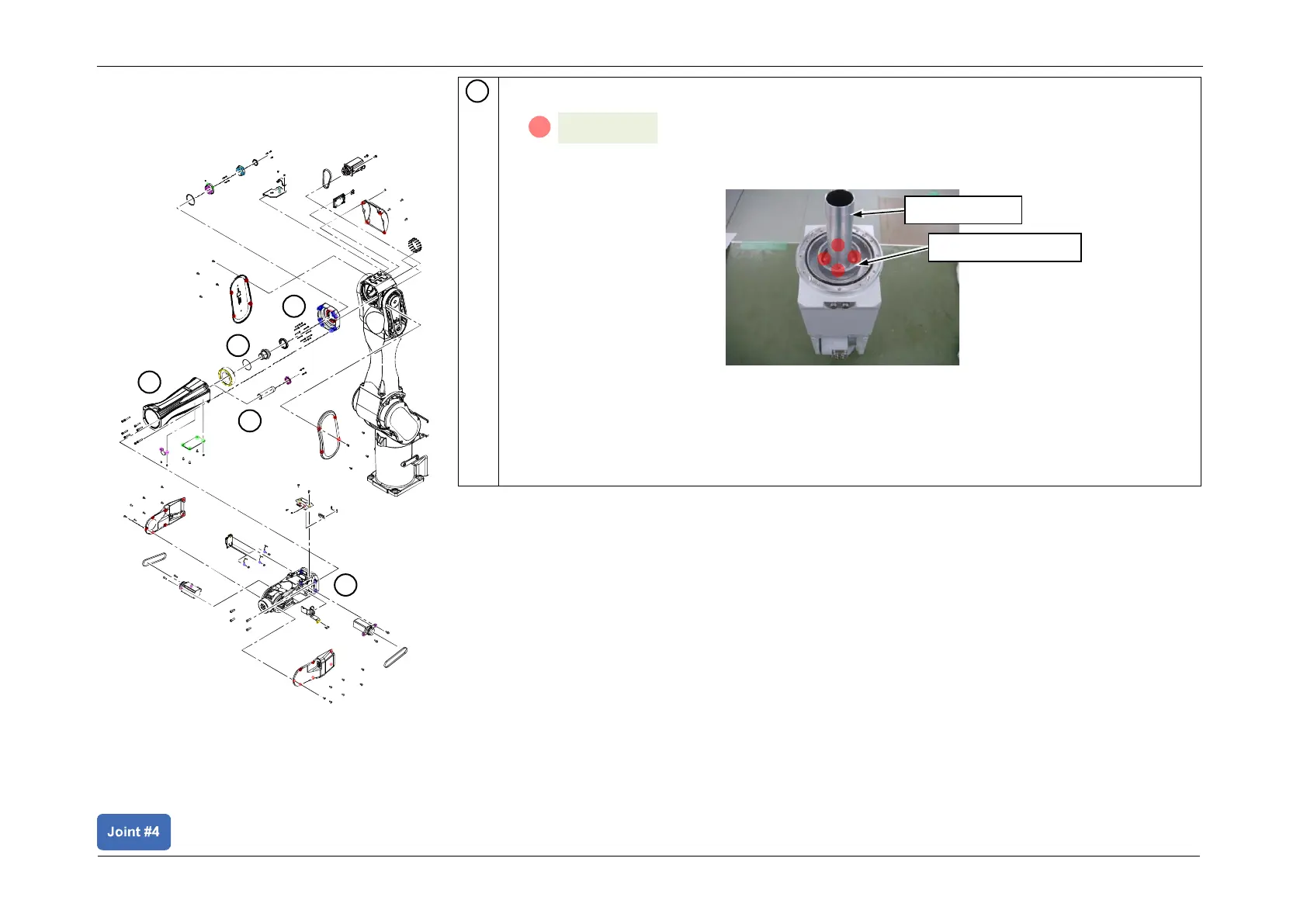

1. Remove the J4 sleeve holder.
2. Remove the J4 sleeve.
CAUTION
Handle the sleeve with care since it is thin and easy to deform.
POINT
The parts are attached together with the liquid gasket, and may be difficult to remove. If
difficult to remove, pull out while rotating the sleeve.
4
J4 sleeve
J4 sleeve holder
S01: 4-M3x6
A
2
4
1
3
5
Removing the Reduction Gear Unit
