C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-166 Rev.1

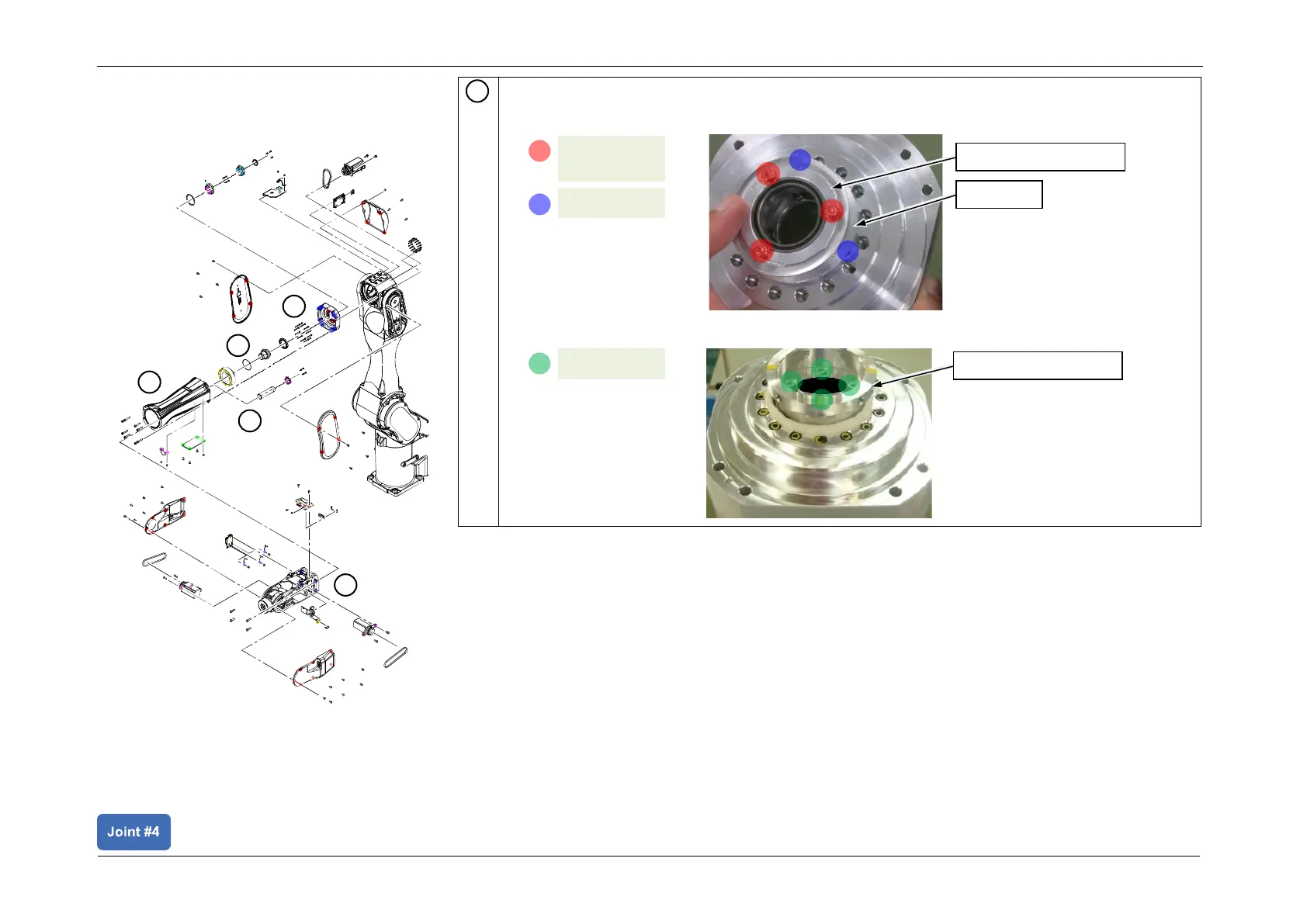

1. Remove the pulley bearing.
2. Remove the pulley.
3. Remove the pulley spacer.
5
C
S01: 4-M3x8
Pulley spacer
S01: 3-M3x8
and washer
A
Pulley
Pulley bearing
S05: 2-M4x4
B
2
4
1
3
5
Removing the Reduction Gear Unit
