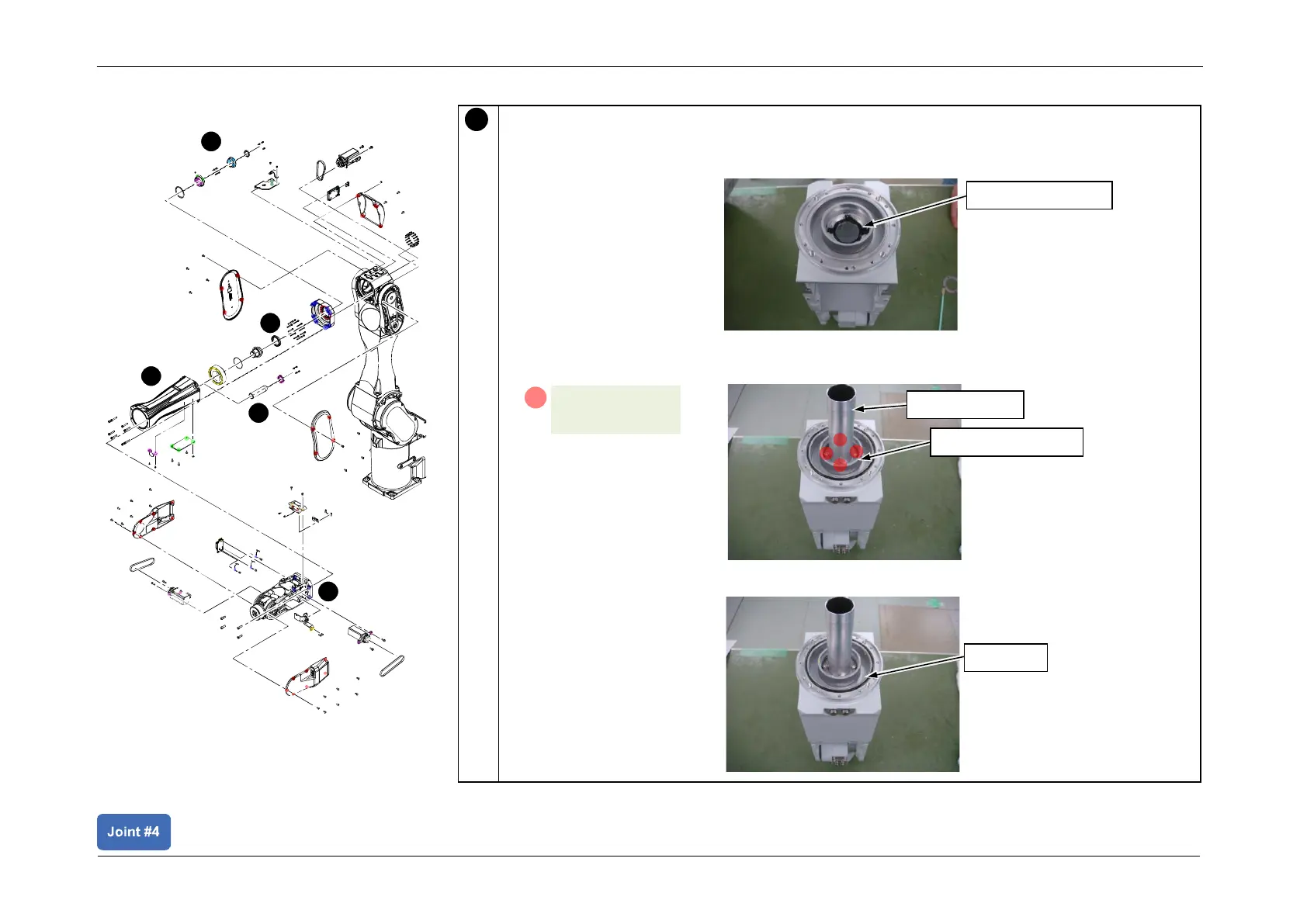

Installing the Reduction Gear Unit
Install the J4 Reduction Gear Unit.
1. Apply the liquid gasket to the mating surface of the sleeve and fixing bolts in order to
prevent grease leakage of the Reduction Gear.
2. Fit the J4 sleeve and install the J4 sleeve holder.
3. Install the O-ring.
1
O-ring
A
S01: 4-M3x6
(2.0 +/- 0.1 N⋅m)
J4 sleeve
J4 sleeve holder
Liquid gasket
1
1
1
2
3
