C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-168 Rev.1

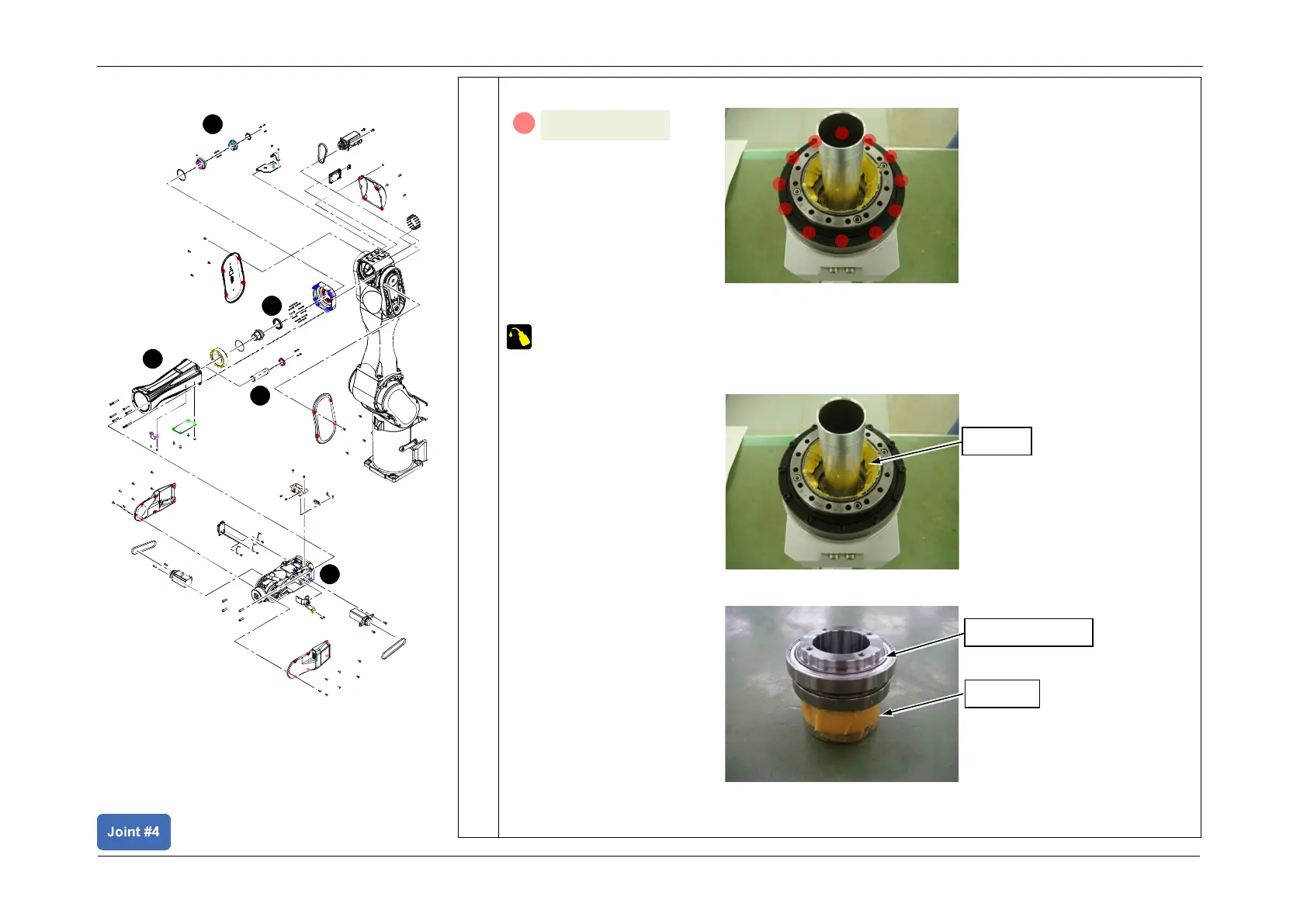

4. Install the J4 Reduction Gear.
5. Apply grease at the location shown in the figure.
SK-1A
• Inside of Flexspline 10 g
• Wave Generator 10 g
Wave Generator
Grease
Grease
A
S02: 12-M3x28
1
1
1
2
3
Installing the Reduction Gear Unit
