Epson C8-B - Page 211

C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-169 Rev.1

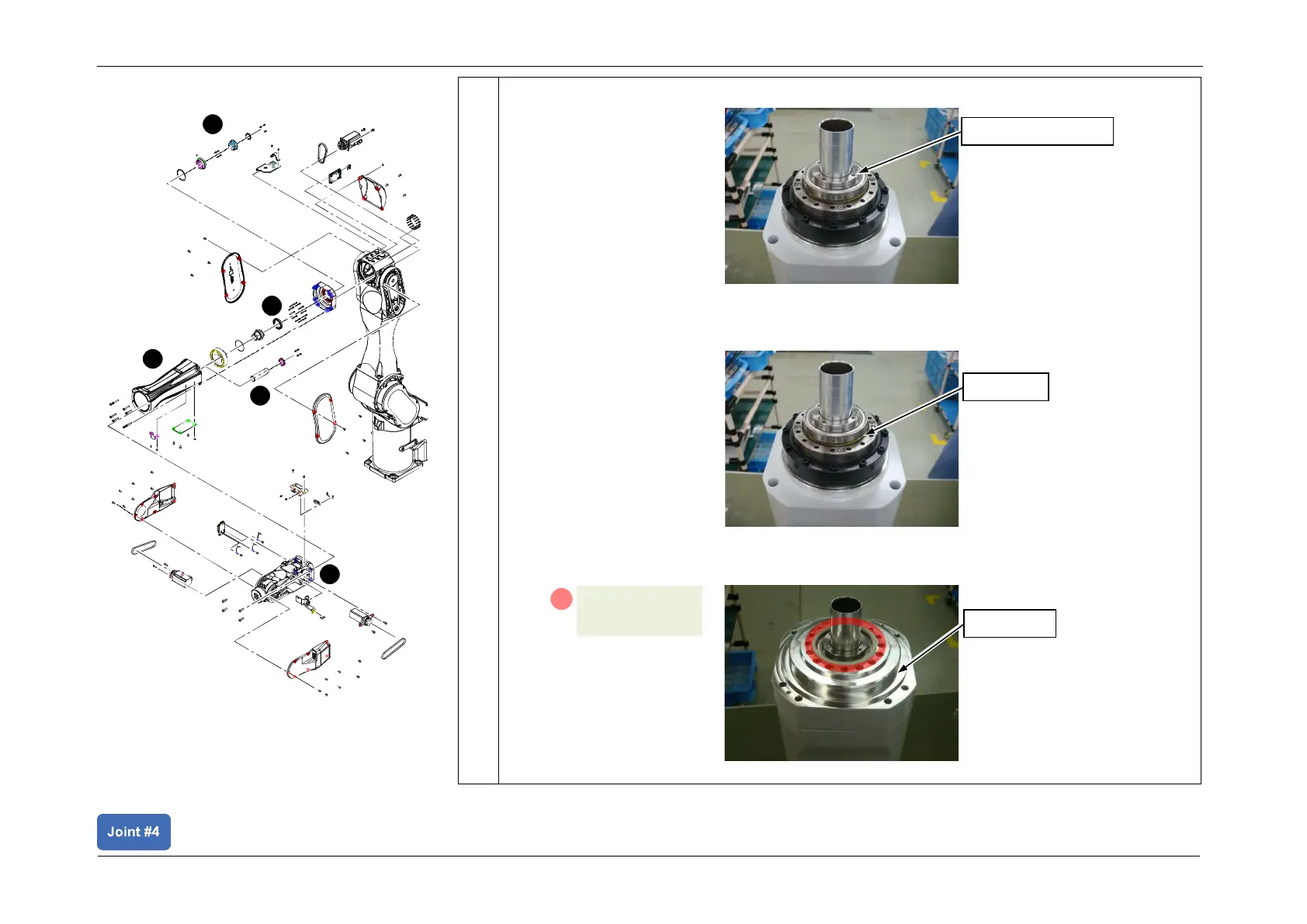

6. Install the Wave Generator.
7. Install the O-ring attached to the Reduction Gear on the O-ring groove on the J4
Reduction Gear.
8. Install the J4 flange.
A
S02: 16-M3x20
(2.4 +/- 0.1 N⋅m)
J4 flange
O-ring
Wave Generator
1
1
1
2
3
Installing the Reduction Gear Unit
