Epson C8-B - Page 212

C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-170 Rev.1

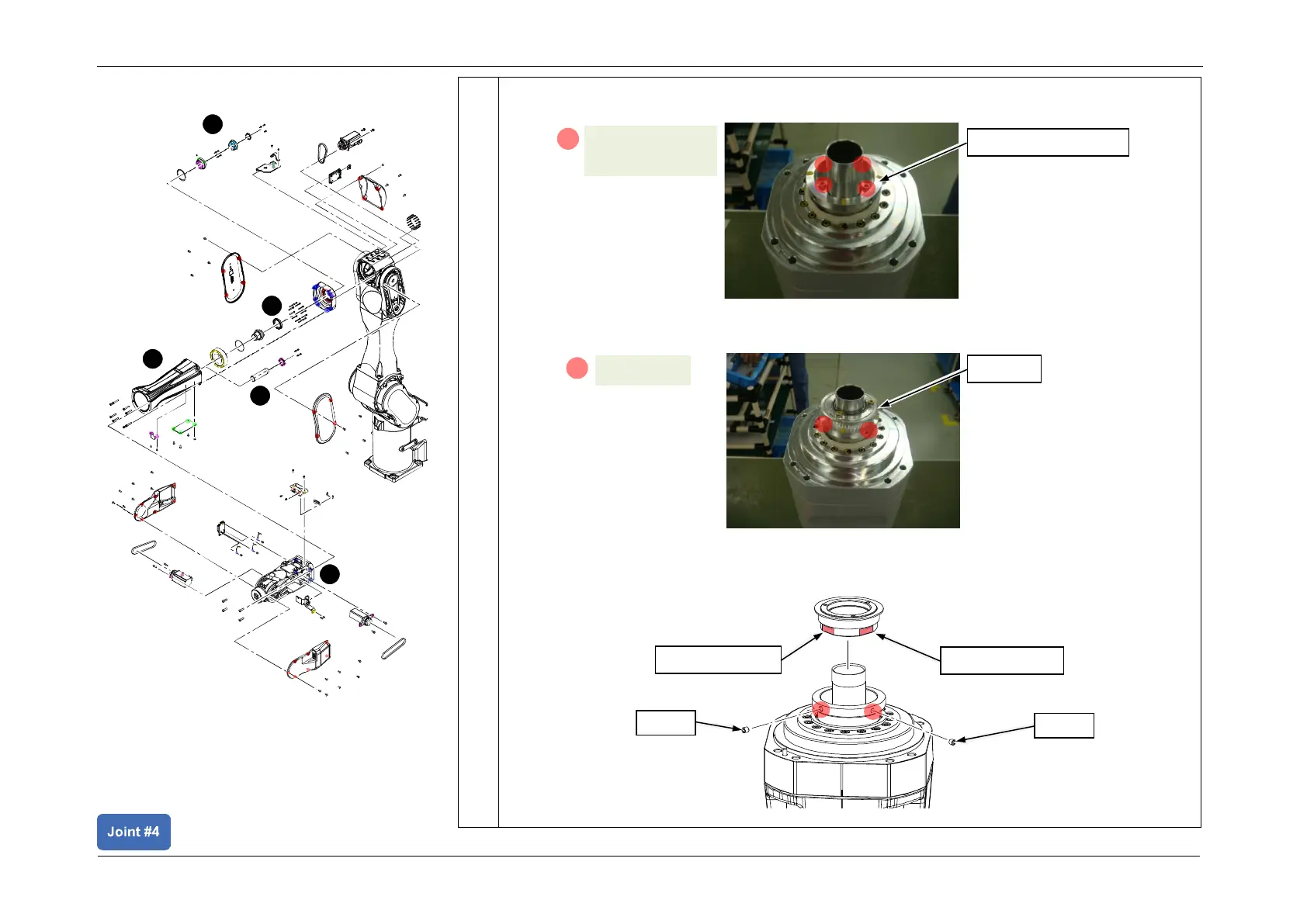

9. Install the pulley spacer.
10. Install the pulley.
POINT
Align the pulley spacer screw holes with the pulley D-cut surface, and secure with screws.
D-cut surface
D-cut surface
Screw
Screw
A
S05: 2-M4x4
Pulley
S01: 4-M3x8
(2.0 +/- 0.1 N⋅m)
A
Pulley spacer
1
1
1
2
3
Installing the Reduction Gear Unit
