C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-171 Rev.1

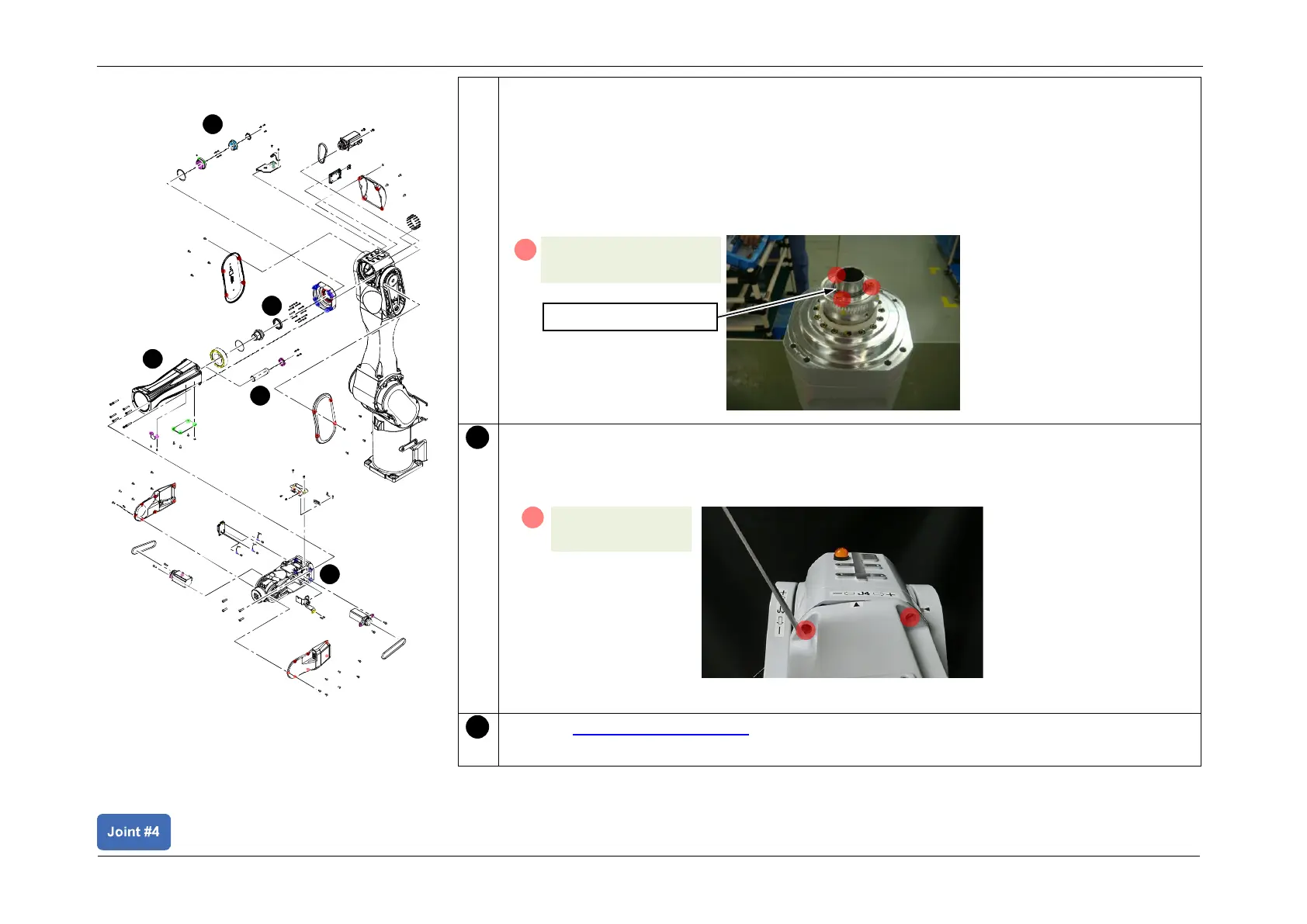

11. Apply adhesive to the following parts of the J4 pulley.
Adhesive: Loctite 641
• Bearing mating surface
• Inner ring (J4 sleeve)
• Outer ring (J4 pulley)
12. Install the J4 pulley bearing, and secure with bearing holder screws.
Install the Arm4 extension part on Arm3.
POINT
Rotate the Arm4 extension part to shift its position, and install all bolts.
Refer to Installing the Arm4 Unit and install the Arm4 Unit.
A
S01: 3-M3x8 and washer
(2.0 +/- 0.1 N⋅m)
J4 pulley bearing
2
S02: 8-M5x30
(10.0 +/- 0.5 N⋅m)
A
3
1
1
1
2
3
Installing the Reduction Gear Unit
