C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-173 Rev.1

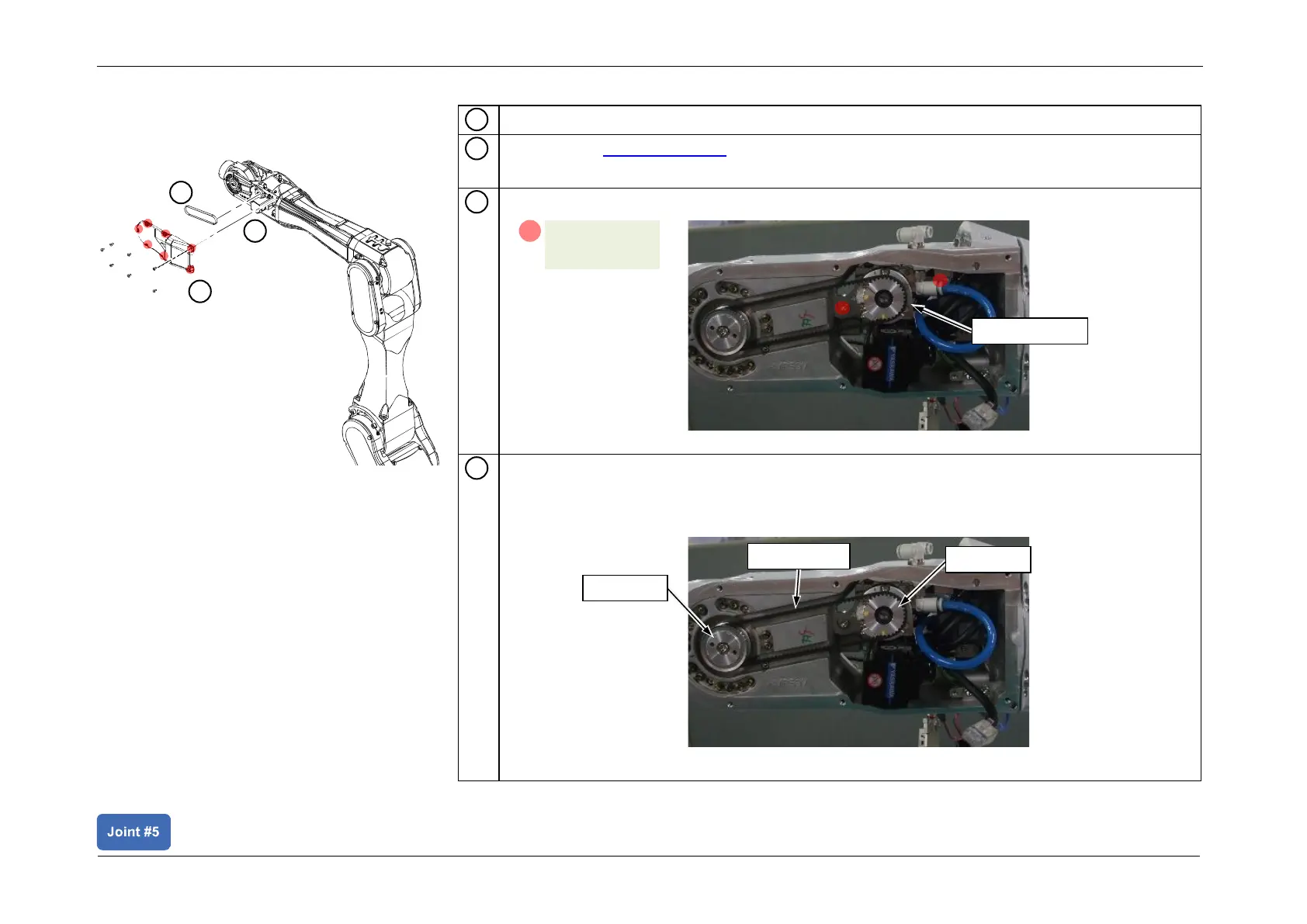

Removing the Timing Belt
Turn OFF the Controller.
Remove the Arm4 side cover (left).
Loosen the screws securing the J5 Motor unit.
Remove the J5 Timing Belt.
POINT
First remove the Timing Belt from pulley 1, then from pulley 2.
1
2
3
A
S01: 2-M4x15
and washer
J5 Motor unit
4
Timing Belt
Pulley 1
Pulley 2
2
3
4
