Epson C8-B - Page 219

C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-177 Rev.1

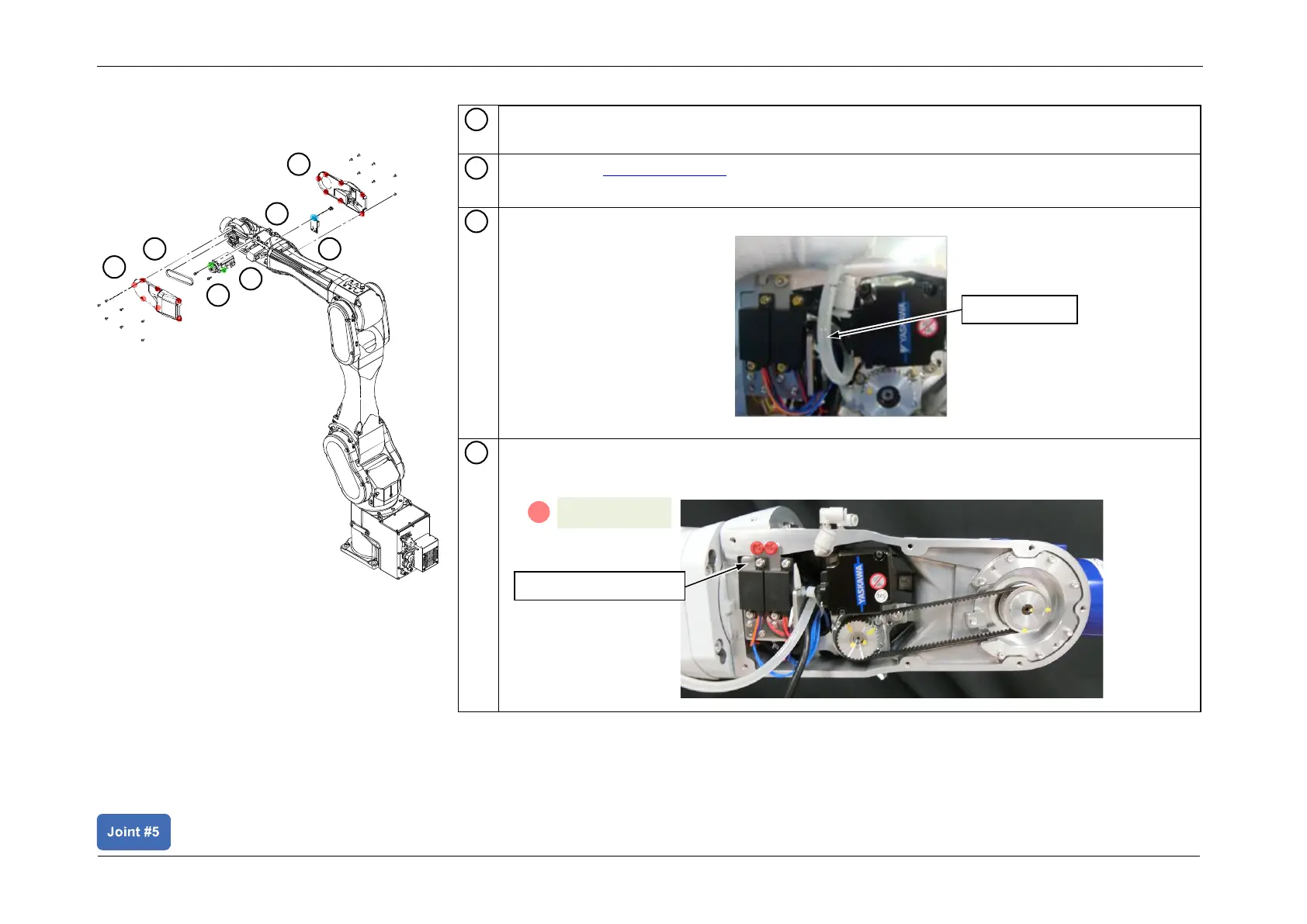

Removing the Motor Unit
Turn OFF the Controller.
Remove the Arm4 side cover (both sides).
Remove the Air tube.
Disconnect the J5 Motor Connectors.
1. Loosen the cable protection plate screws, and remove the plate.
1
2
3
Air tube
4
S01: 2-M4x10
A
Cable protection plate
2
7
6
5
2
3
4
