C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-178 Rev.1

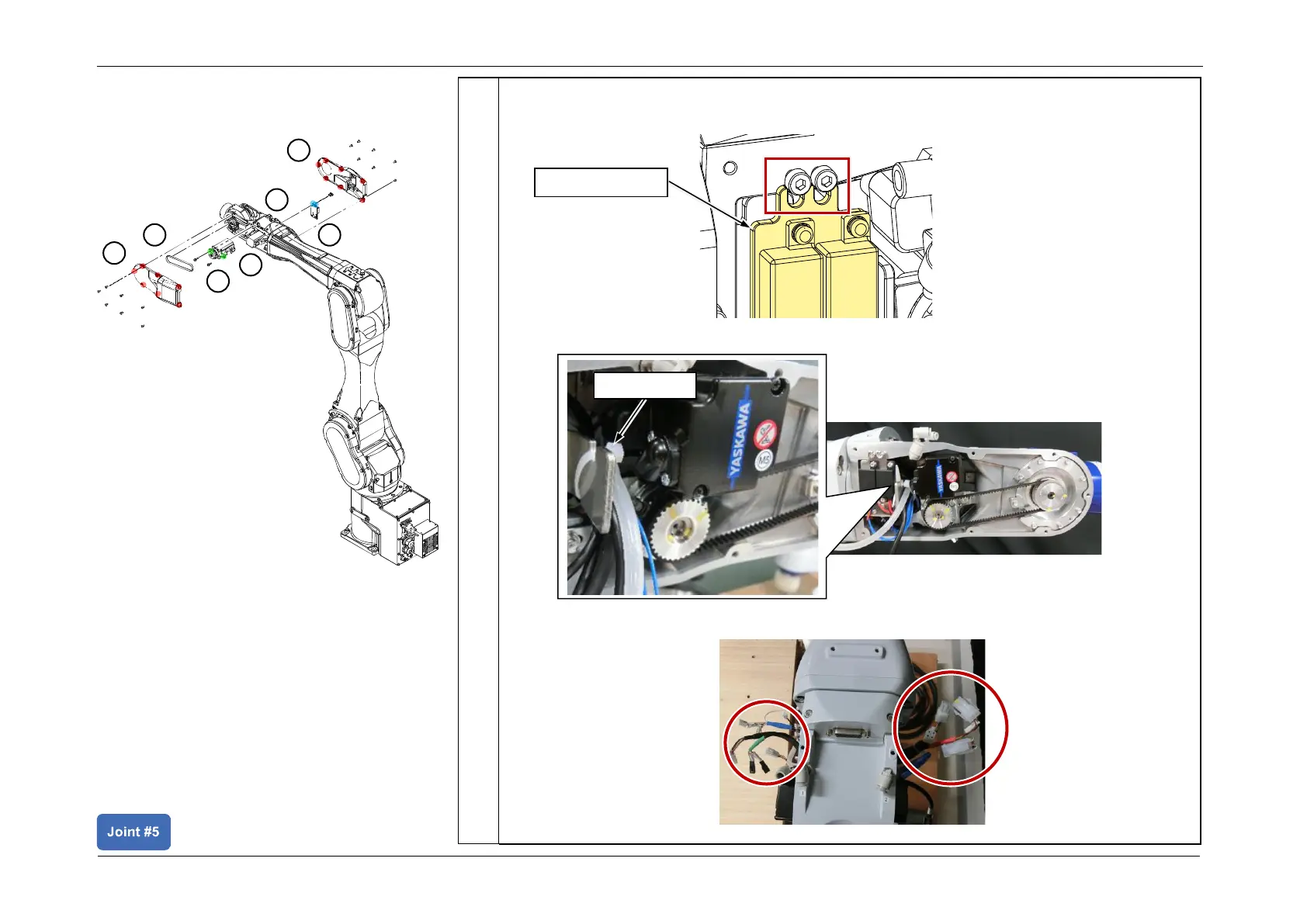

POINT
Slide the cutout section on the cable fixing plate.
2. Cut the wire tie.
3. Disconnect the J5 Motor Connectors (CN151, CN351, CN450).
Wire tie
Cable fixing plate
Removing the Motor Unit
2
7
6
5
2
3
4
