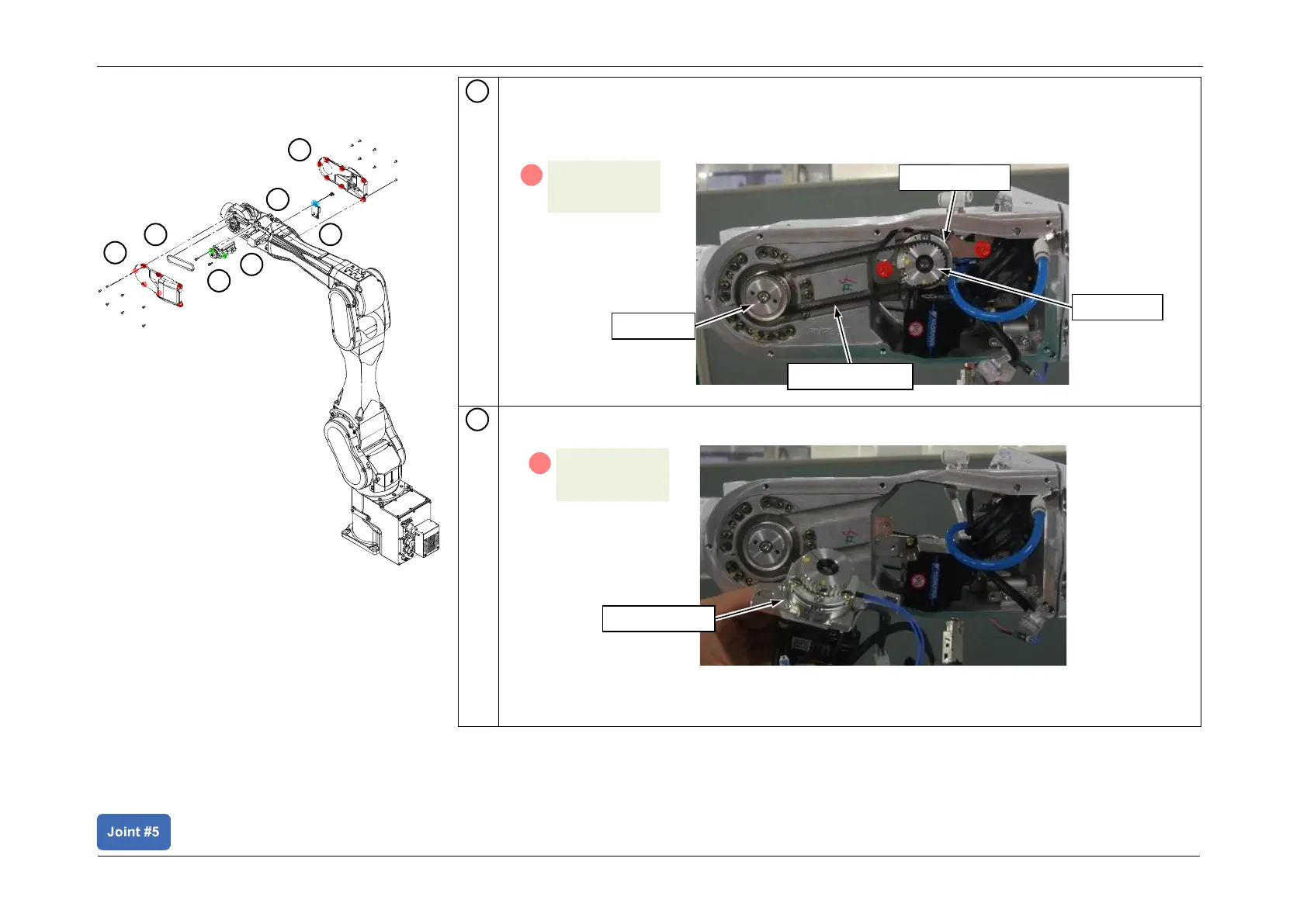

Loosen the screws securing the J5 Motor unit, and remove the J5 Timing Belt.
POINT
First, remove the belt on pulley 1.
Remove the loosened screws, then remove the J5 Motor unit.
POINT
When removing the Motor Unit from the arm, pull from the Motor Pulley side.
6
A
S01: 2-M4x15
and washer
J5 Timing Belt
J5 Motor unit
Pulley 2
Pulley 1
7
A
S01: 2-M4x15
and washer
J5 Motor unit
Removing the Motor Unit
