C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-185 Rev.1

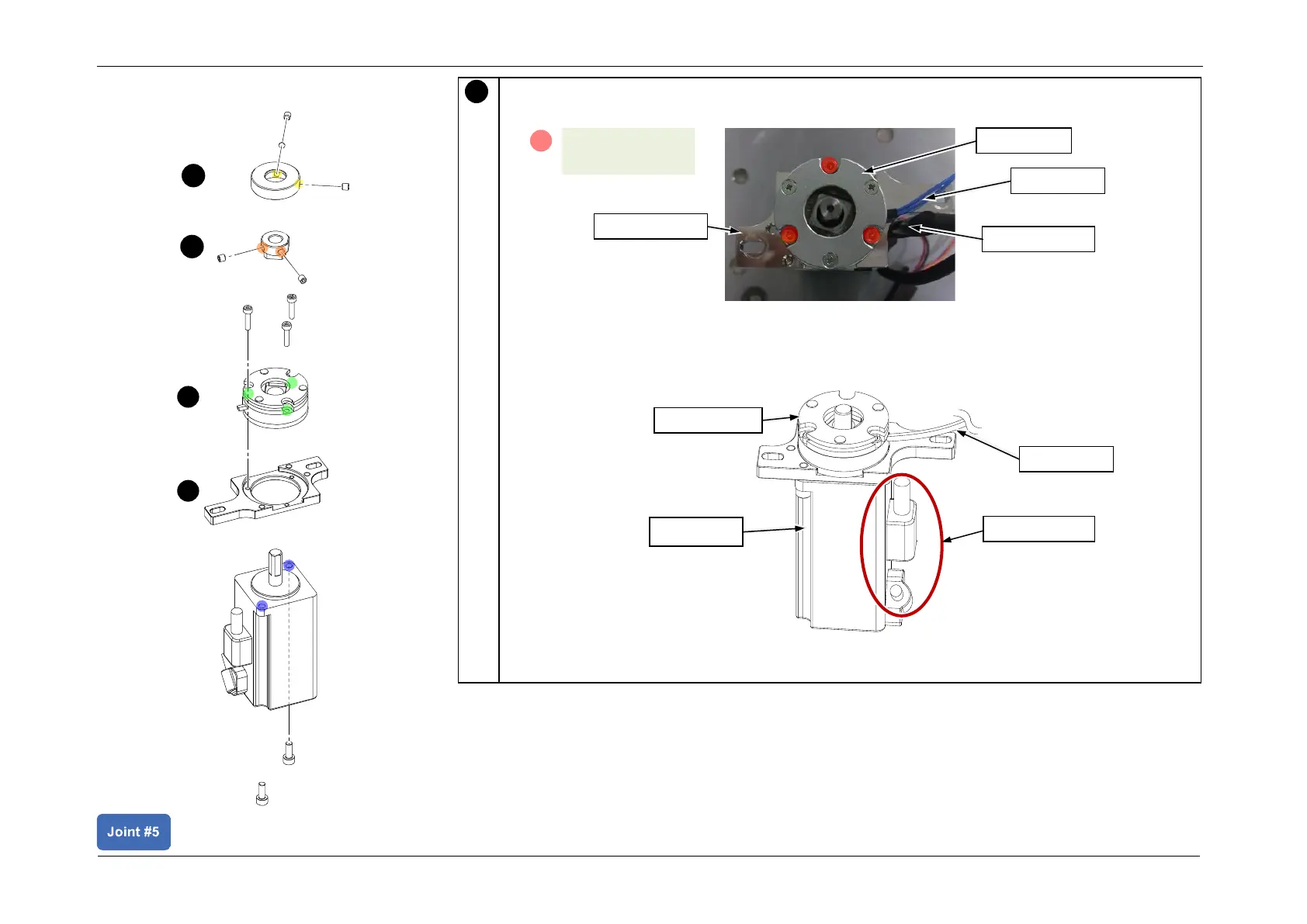

Install the J5 brake.
POINT
Install with the orientation shown in the figure.
2
J5 brake
J5 Motor
Motor cable
Brake cable
A
S01: 3-M3x13
(2.0 +/- 0.1 N⋅m)
J5 brake
Brake cable
Motor cable
Motor Plate
4
3
2
1
Motor Unit Assembly
