Epson C8-B - Page 226

C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-184 Rev.1

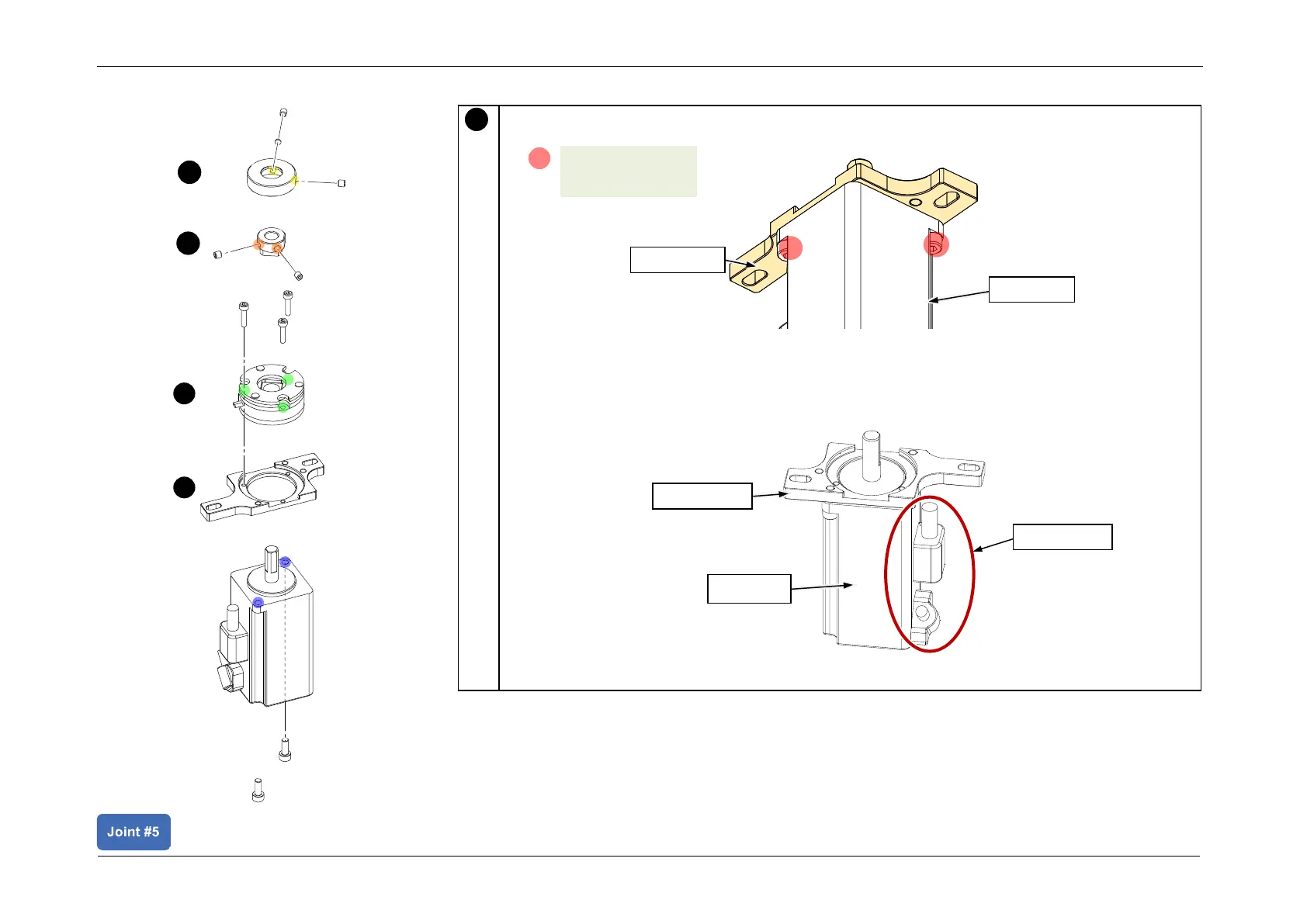

Motor Unit Assembly
Install the Motor Plate.
POINT
Install with the orientation shown in the figure.
1
Motor Plate
J5 Motor
Motor cable
A
S01: 2-M4x10
(4.0 +/- 0.2 N⋅m)
J5 Motor
Motor Plate
4
3
2
1
