C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-183 Rev.1

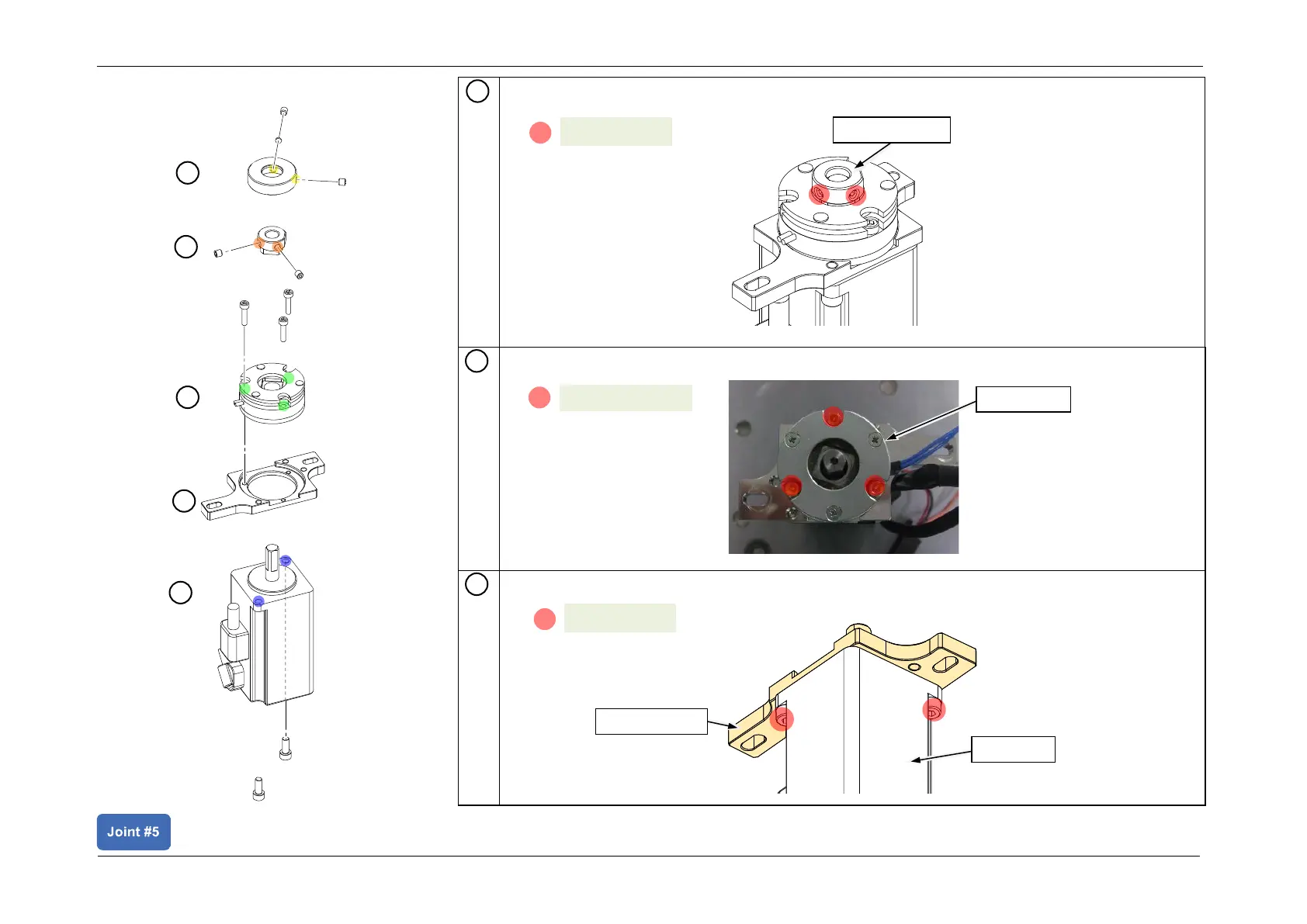

Remove the Brake Hub.
Remove the J5 brake.
Remove the Motor Plate.
3
A
S05: 2-M4x4
Brake Hub
4
A
S01: 3-M3x13
J5 brake
5
A
S01: 2-M4x10
J5 Motor
Motor Plate
Motor Unit Disassembly
1
2
3
4
5
