C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-182 Rev.1

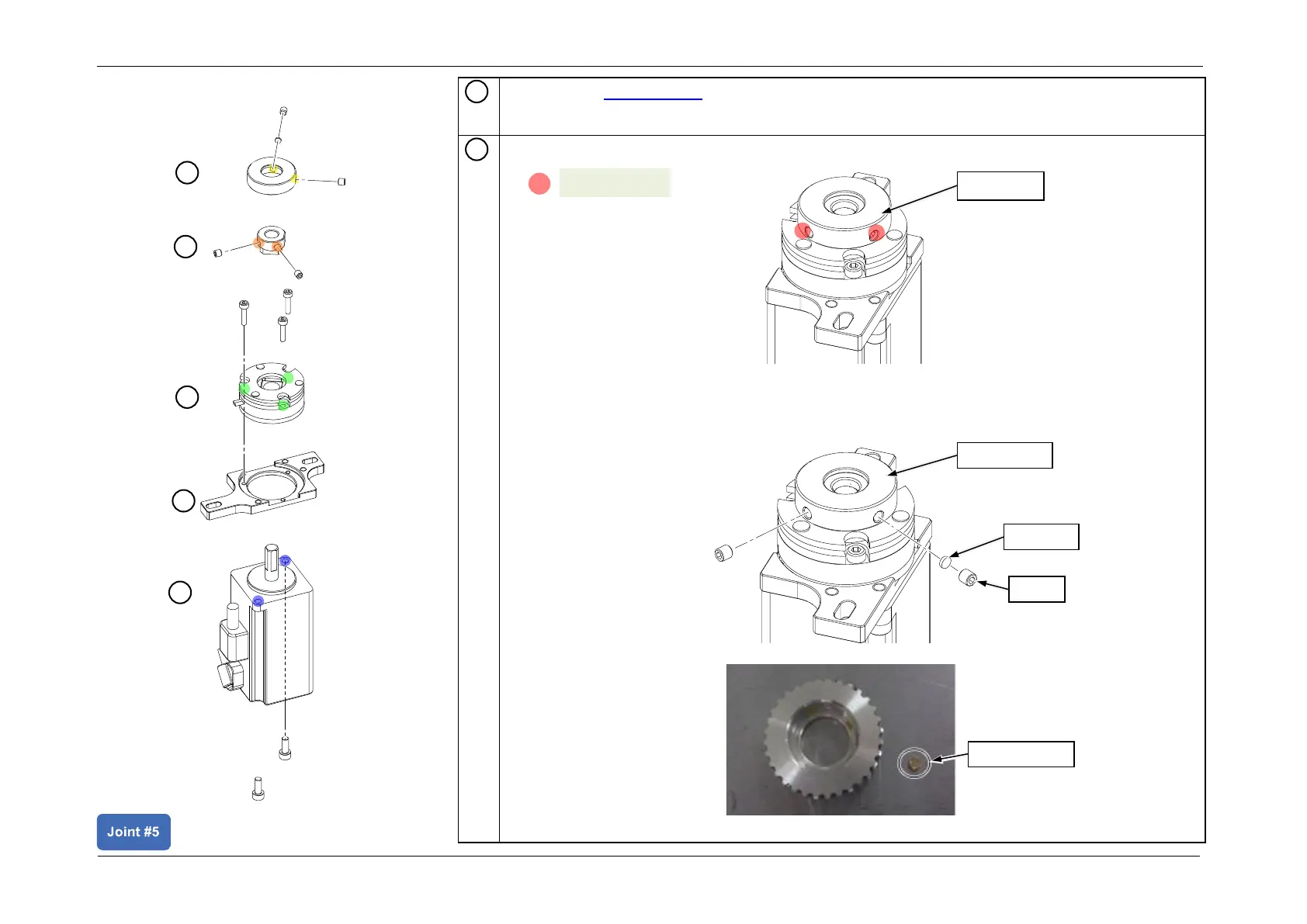

Remove the J5 Motor unit.
Remove pulley 1.
CAUTION
A brass bushing is included on one of the set screws. When removing the pulley, be careful
not to drop and lose the bushing.
1
2
Screw
Bushing
Pulley 1
Bushing
A
S05: 2-M4x4
Pulley 1
Motor Unit Disassembly
1
2
3
4
5
