Epson C8-B - Page 250

C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-208 Rev.1
POINT

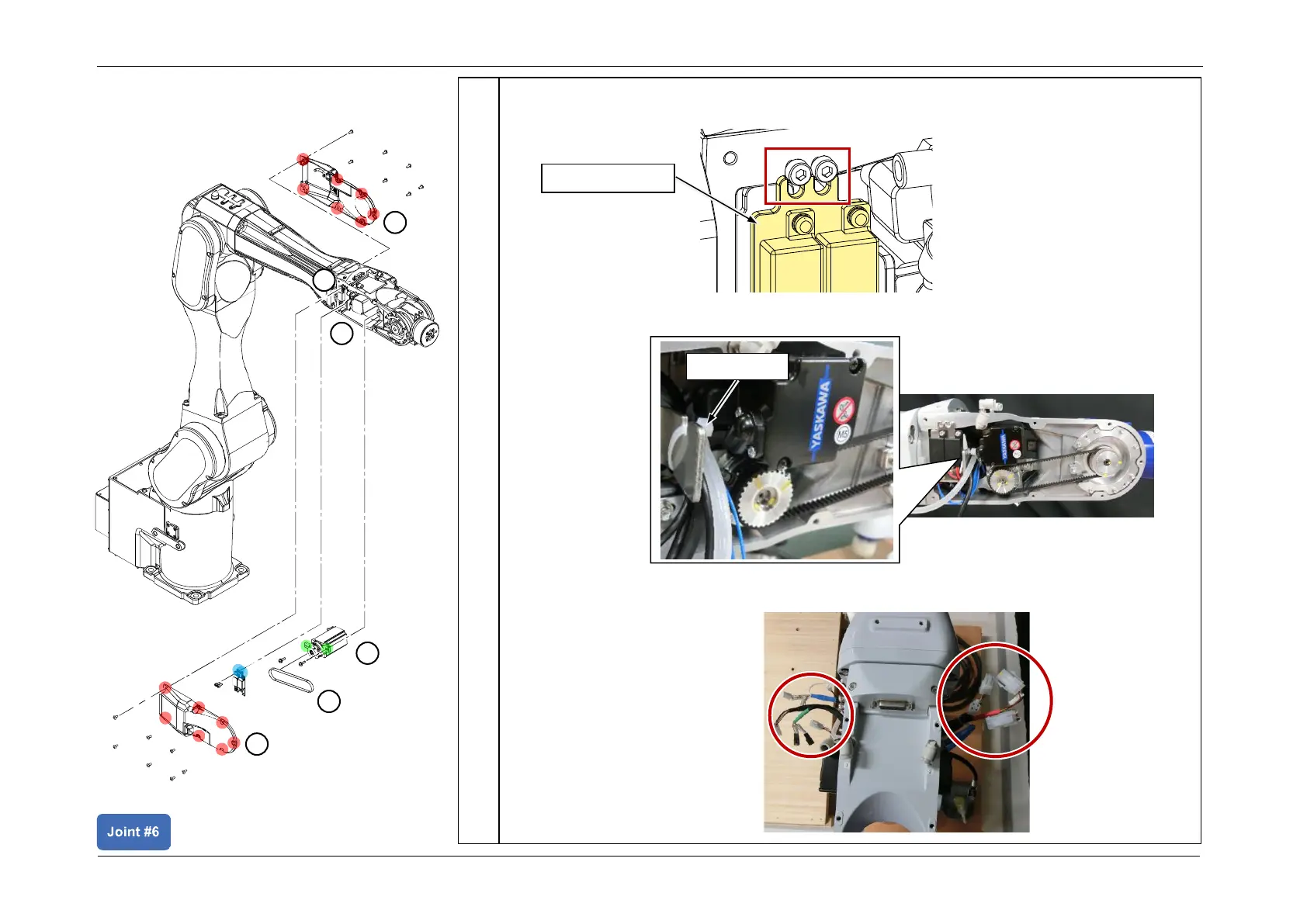

Slide the cutout section on the cable fixing plate.
2. Cut the wire tie.
3. Disconnect the connectors (CN361, CN461, CN161).
Wire tie
Cable fixing plate
3
5
6
4
2
Removing the Motor Unit
2
