C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-209 Rev.1

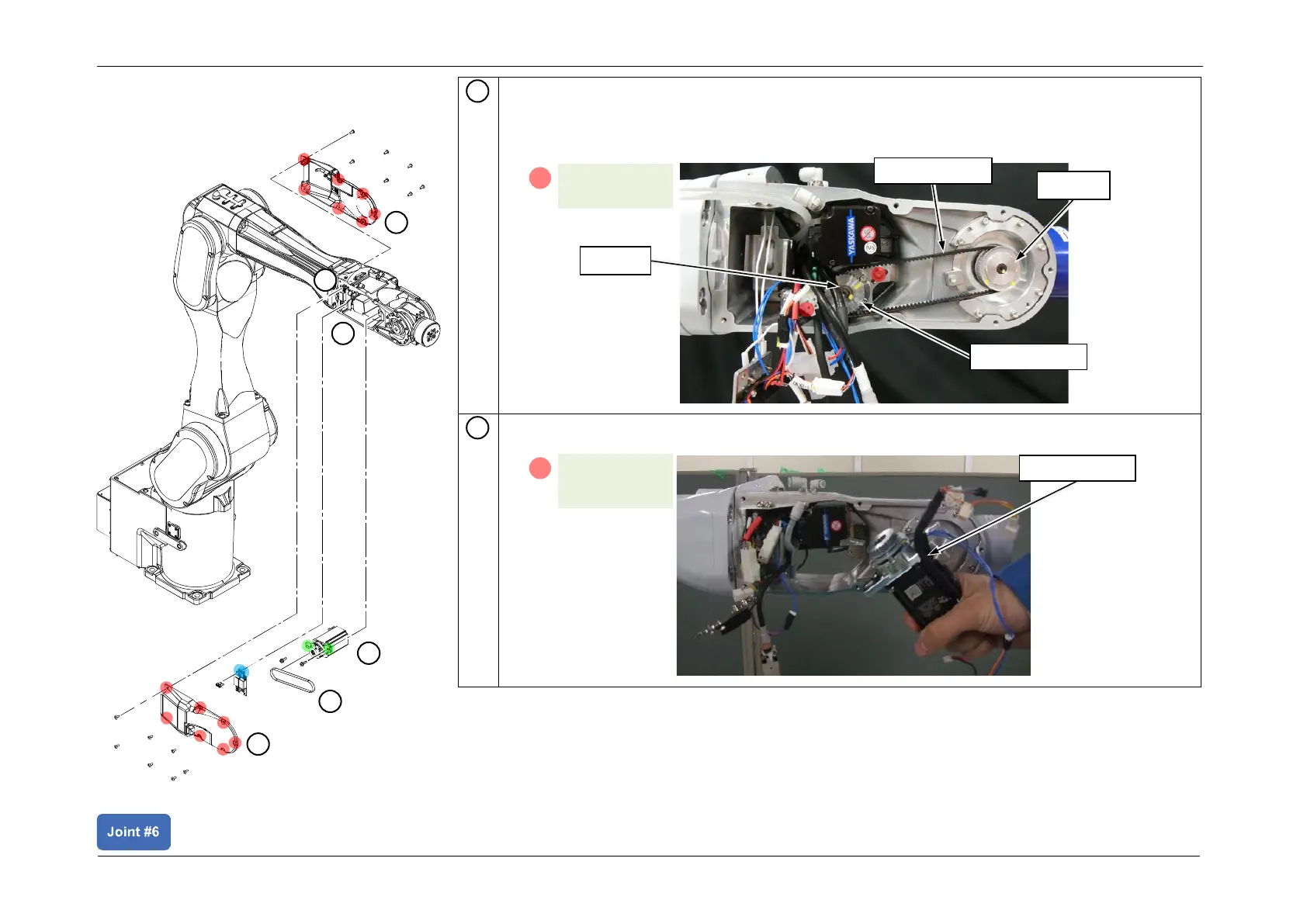

Loosen the screws securing the J6 Motor unit, and remove the J6 Timing Belt.
POINT
First, remove the belt on pulley 1.
Remove the loosened screws, then remove the J6 Motor unit.
5
S01: 2-M4x15
and washer
A
J6 Motor unit
Pulley 1
Pulley 2
J6 Timing Belt
6
J6 Motor unit
S01: 2-M4x15
and washer
A
3
5
6
4
2
Removing the Motor Unit
2
