C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-219 Rev.1

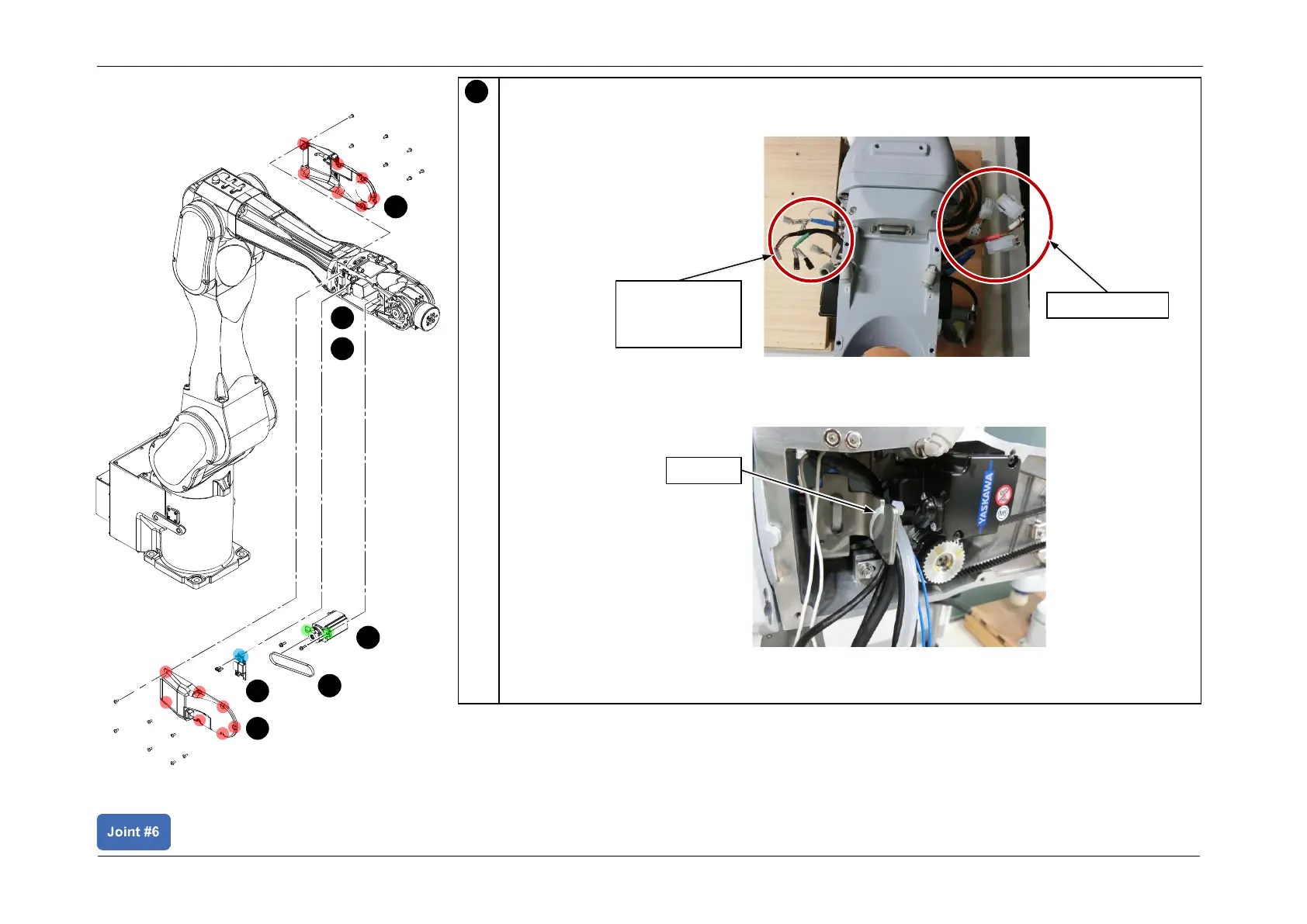

Connect the J6 Motor Connectors, and secure the cables protection plate to Arm4.
1. Pull out each connector as shown in the figure below.
2. Secure the following cables to the cable fixing plate using the wire tie (AB200).
Force sensor connector, Air Tube, CN351/CN361, CN450/CN460, CN451/CN461
3. Connect the following connectors.
CN351, CN361, CN450, CN460, CN451, CN461, CN151, CN161
3
Wire tie
CN351/CN361,
CN450/CN460,
CN451/CN461
CN151, CN161
3
2
1
5
Installing the Motor Unit
5
4
3
