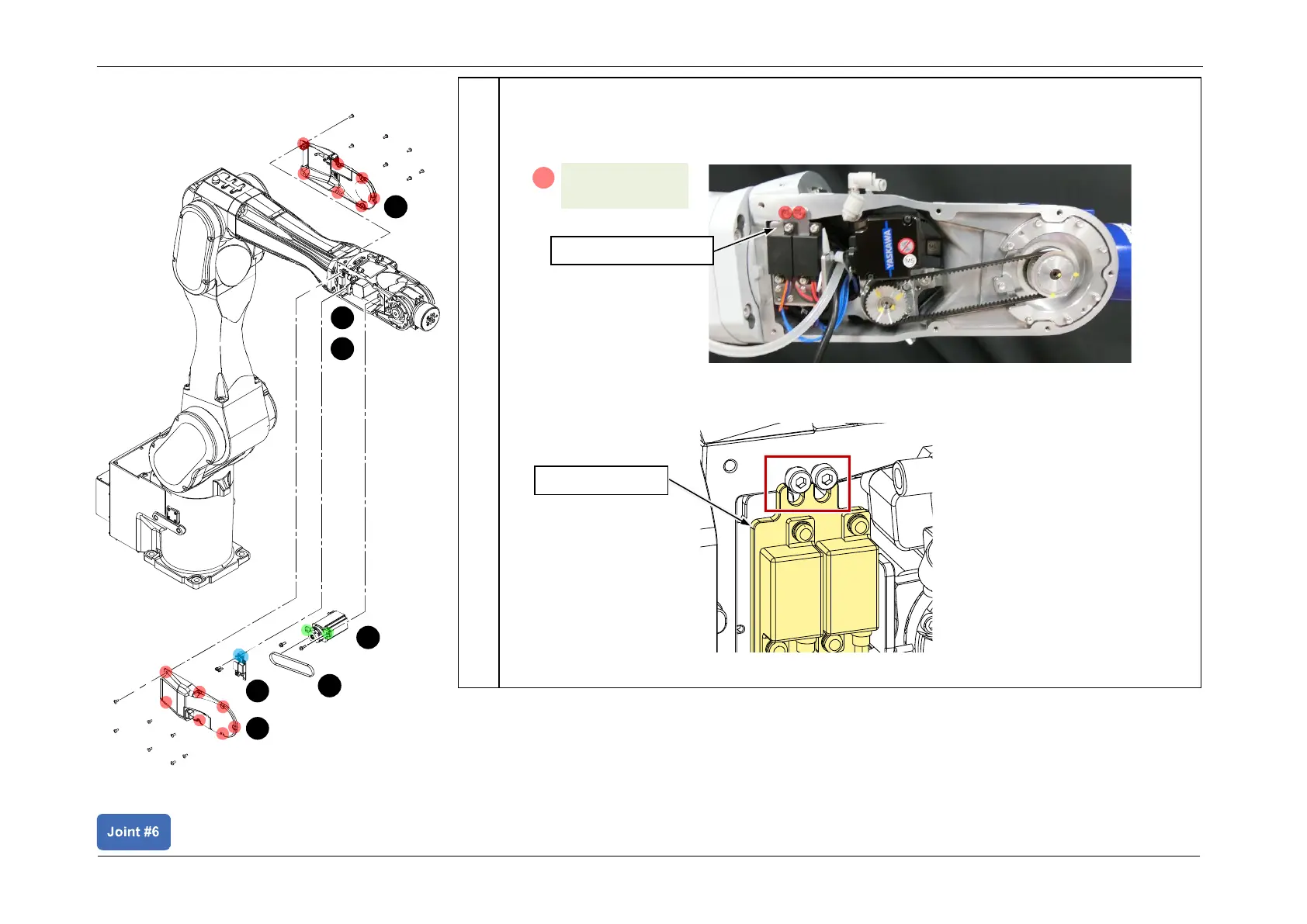

4. Install the cable protection plate.
CAUTION
Be careful not to let the cables get pinched.
POINT
Slide the cutout section on the cable protection plate, and secure with screws.
Cable fixing plate
S01: 2-M4x10
(4.0 +/- 0.2 N⋅m)
A
Cable protection plate
3
2
1
5
Installing the Motor Unit
5
4
3
