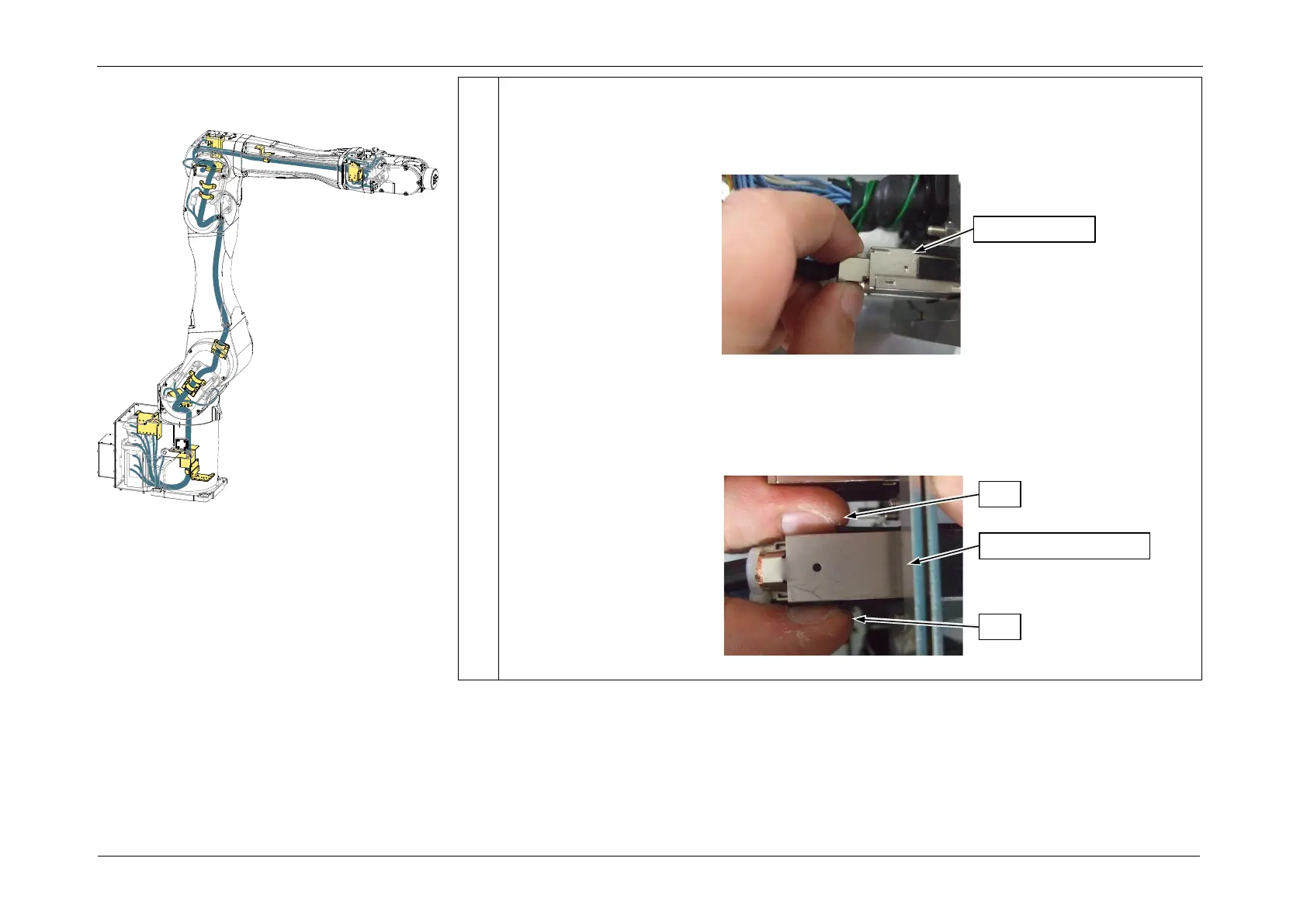

2. Disconnect the RJ45 connector.
POINT
Press the connector clip, and pull out.
3. Disconnect the F-sensor connector.
POINT
Open the clips on both ends of the connector and pull it out.
F-sensor connector
Clip
Clip
RJ45 connector
Removing the Cable Unit
