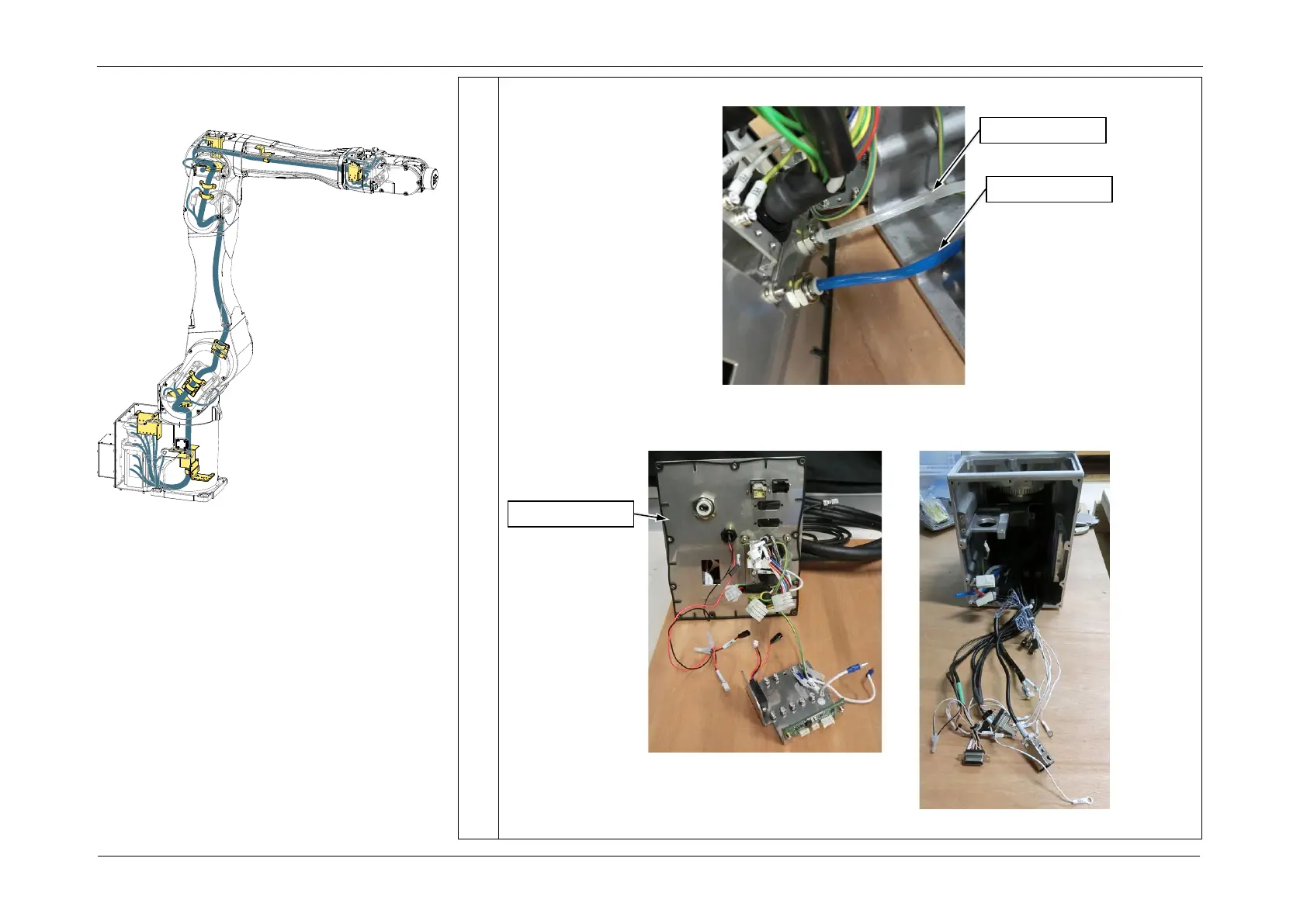

11. Disconnect the Air Tubes (blue/white).
POINT
These procedures remove the Connector Plate from the Manipulator.
Connector Plate
Air Tube (white)
Air Tube (blue)
Removing the Cable Unit
