C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-234 Rev.1

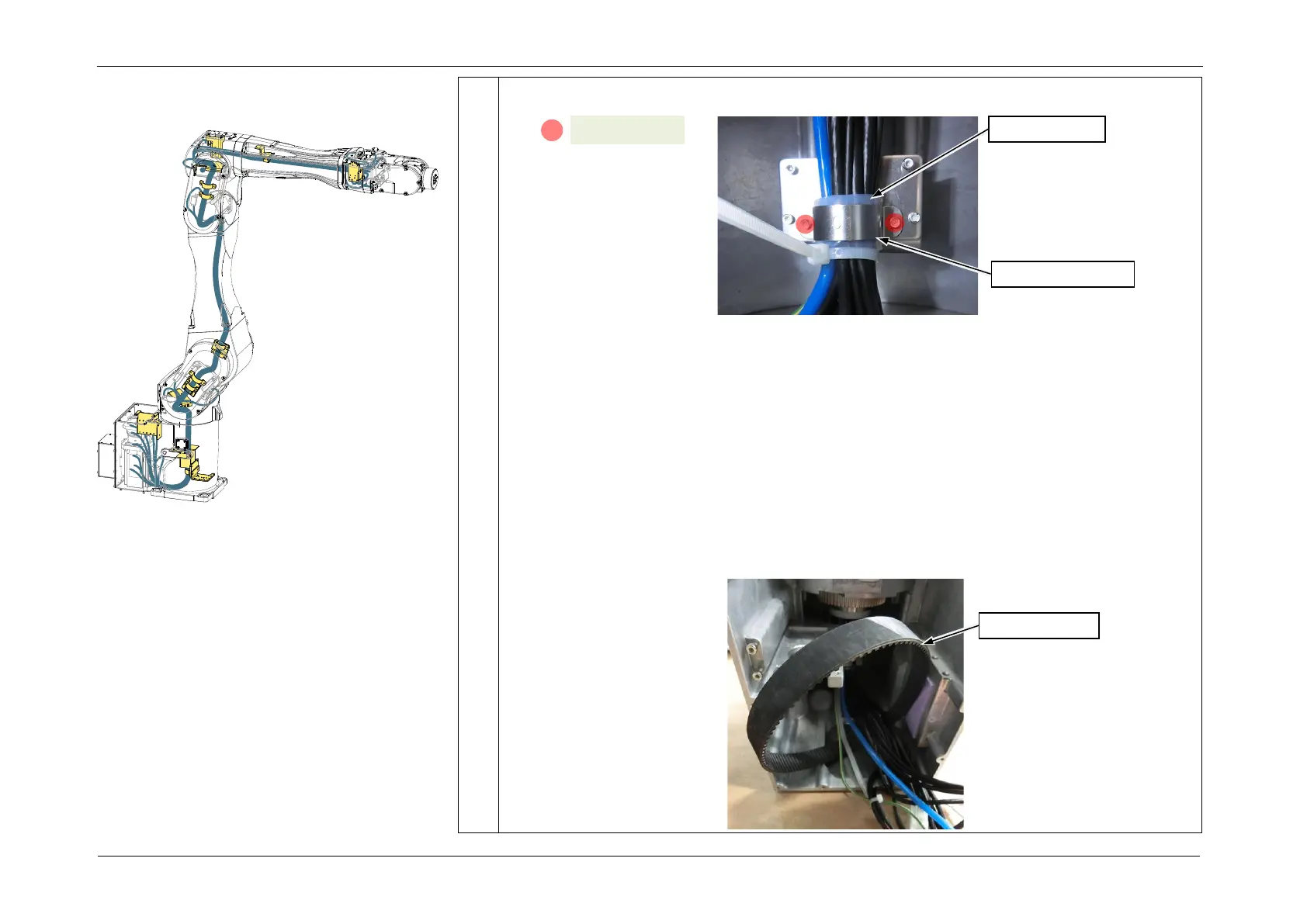

2. Remove the cable bracket and Silicone Sheet.
CAUTION
In preparation for reassembly, mark the cable bundle positions so that you can see the
positional relationship, or attach wire ties for markers as shown in the photo.
3. Remove the J1 Timing Belt.
J1 Timing Belt
S01: 2-M3x6
A
Cable bracket
Silicone Sheet
Removing the Cable Unit
