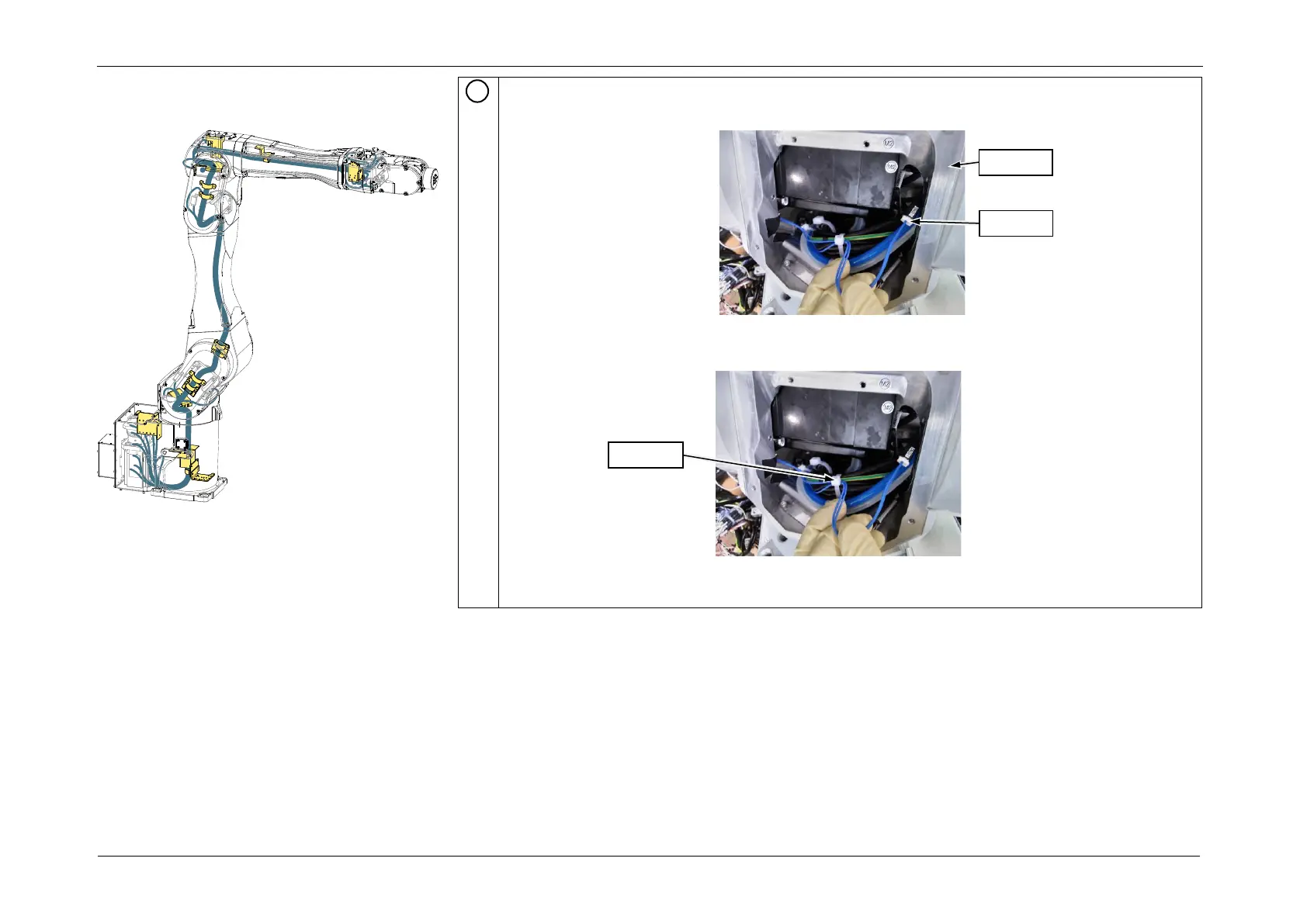

Remove the Cable Unit from Arm1.
1. Disconnect the connector (CN420-1).
2. Cut the wire tie.
CAUTION
Mark the cable binding positions so that their positions are obvious during reassembly.
6
Wire tie
Arm1
CN420
Removing the Cable Unit
