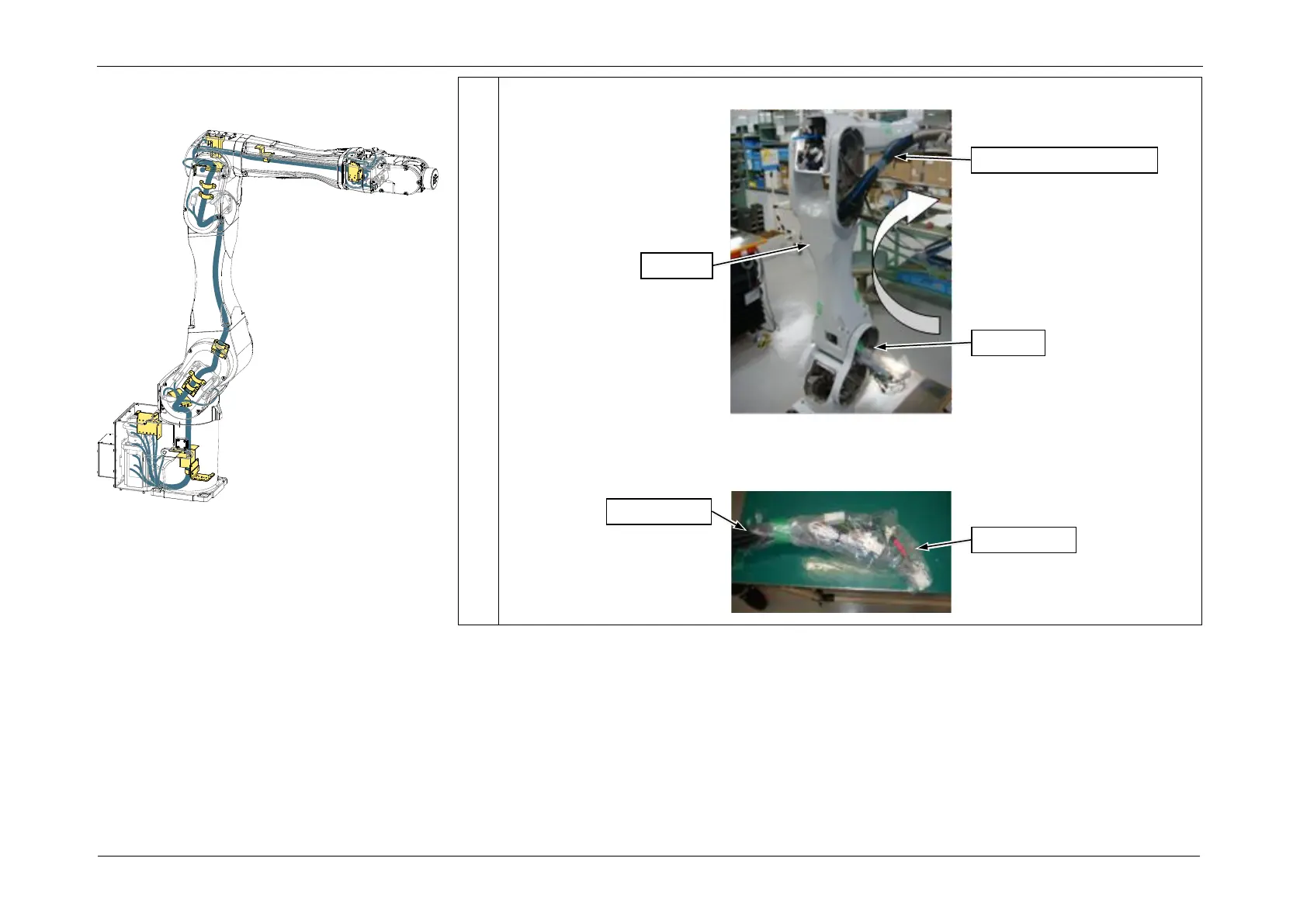

13. Pull out the separated Cable Unit (base side) from the Arm1 side to the Arm2 side.
POINT
To protect the connectors and facilitate the work, first cover the connectors with a plastic
bag.
Plastic bag
Connectors
Cable Unit (base side)
Arm1
Arm2
Removing the Cable Unit
