C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-252 Rev.1

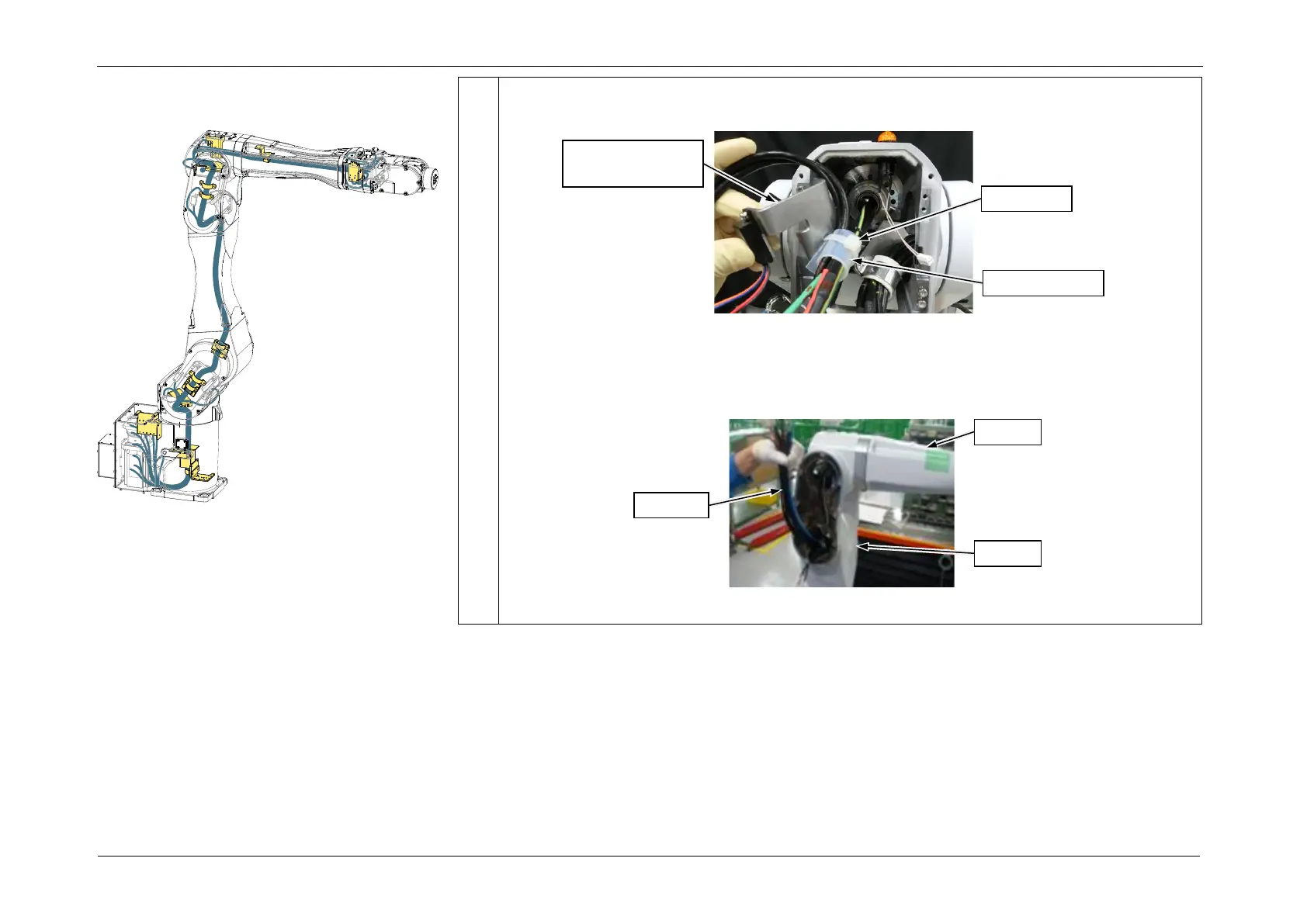

10. Cut the wire tie, and disconnect the cables from Arm3 cable fixing plate 2.
11. Remove the Silicone Sheet from the cables.
POINT
The Silicone Sheet will be used again during installation. Store it and do not dispose of it.
12. Pull out the cables from the Arm3 side to the Arm2 side.
Cables
Arm3
Arm2
Wire tie
Arm3 cable fixing
plate 2
Silicone Sheet
Removing the Cable Unit
