C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-255 Rev.1

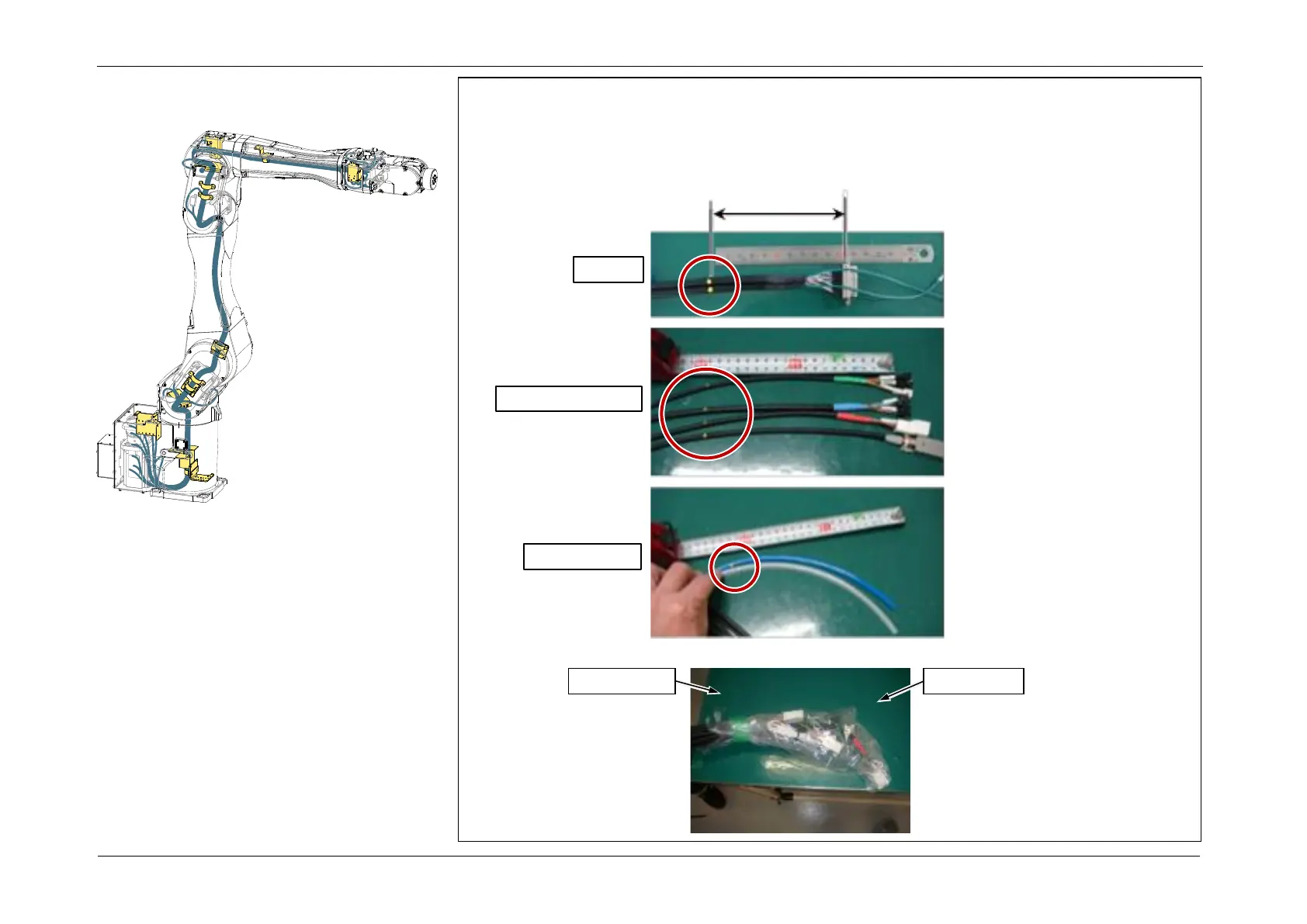

3. Place a mark at the fixing position of each cable you are going to pass through Arm4.
• D-sub: 130 mm from the connector end
• Other cables: 190 mm from the connector end
• Air Tube: 210 mm from the end
4. To protect the connectors and facilitate the work, cover the connectors with a plastic bag.
D-sub
Other cables
Air Tube
130 mm
Plastic bag
Connectors
Installing the Cable Unit
