C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-256 Rev.1

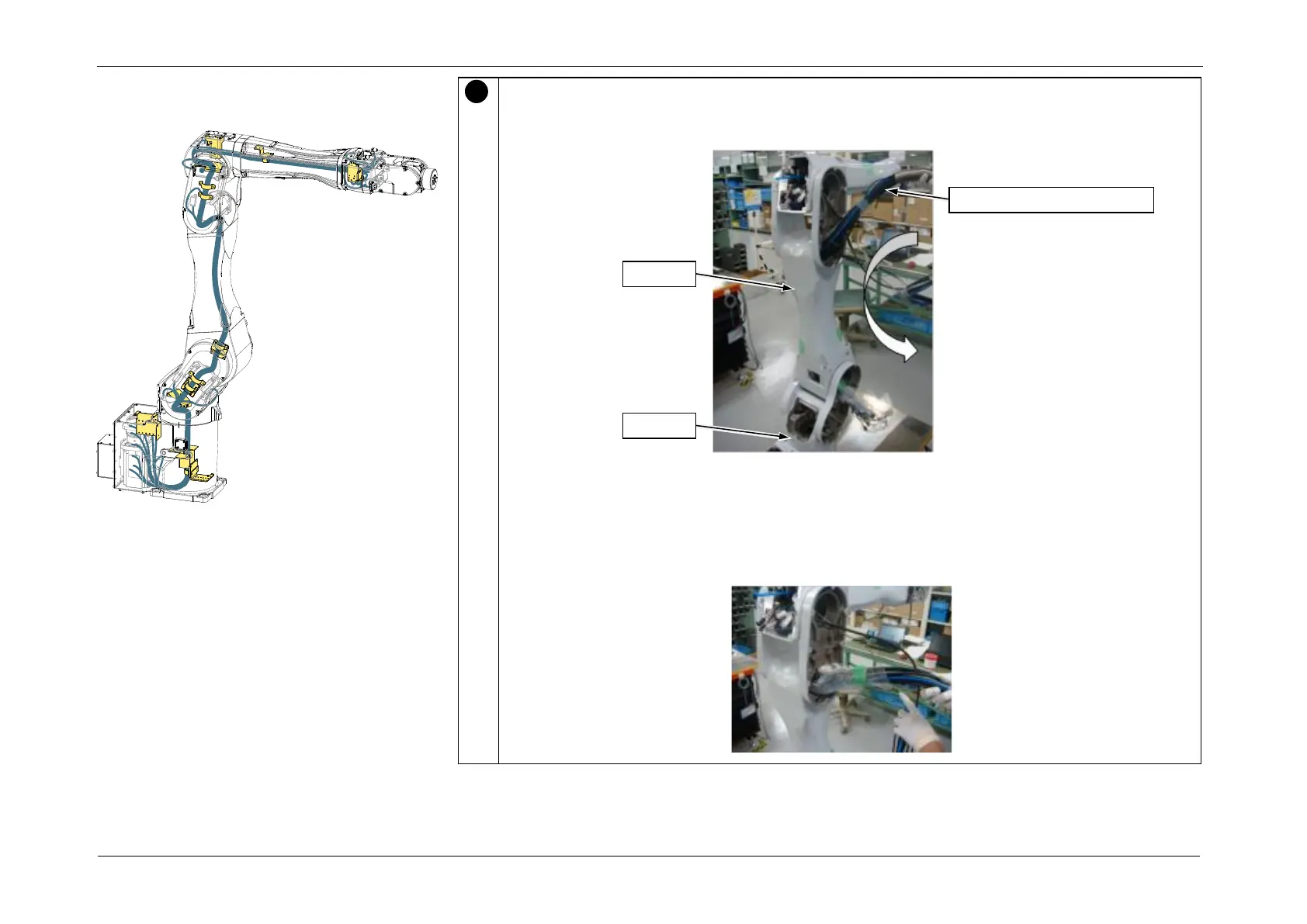

Insert the Cable Unit.
1. Pass the separated Cable Unit (base side) through Arm2 to Arm1.
2. Pass the following cables that have no relay connectors through to the Arm3 side.
• CN351/CN361/FB14 cable
• LAN cable (CN581-3)
• Air Tubes (blue/white)
1
Arm2
Cable Unit (base side)
Arm1
Installing the Cable Unit
