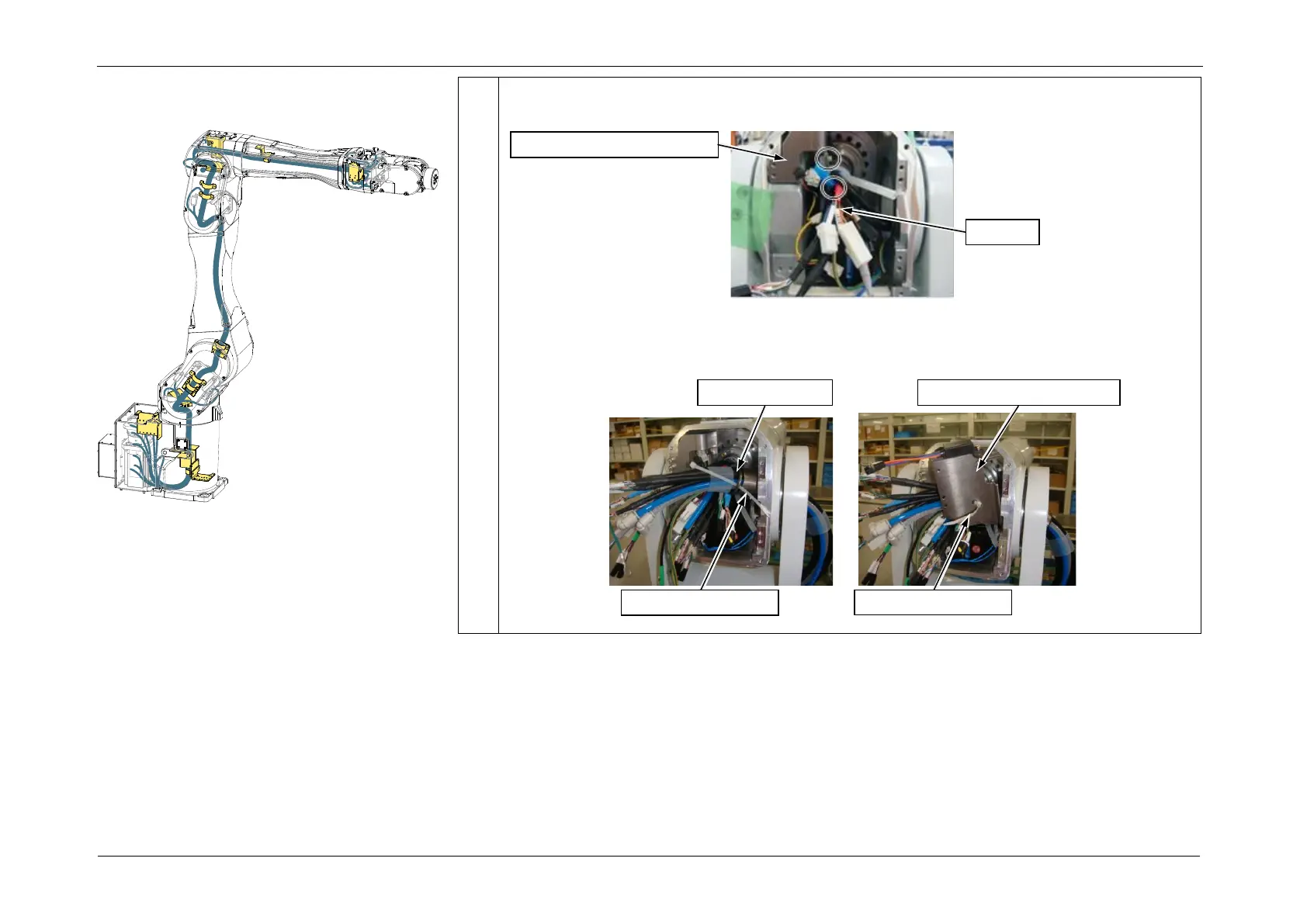

2. Wrap the cables with the Silicone Sheet, and secure the cables to Arm3 cable fixing
plate 2 with the wire tie passed through the plate.
3. Bind the cable protective spring to Arm3 cable fixing plate 1.
Wire tie: AB100
Number of turns of spring to fix: 4 turns
Cable protective
spring
Wire tie (AB100)
Arm3 cable fixing plate 1
Wire tie (AB100)
Cables
Arm3 cable fixing plate 2
Installing the Cable Unit
