C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-263 Rev.1

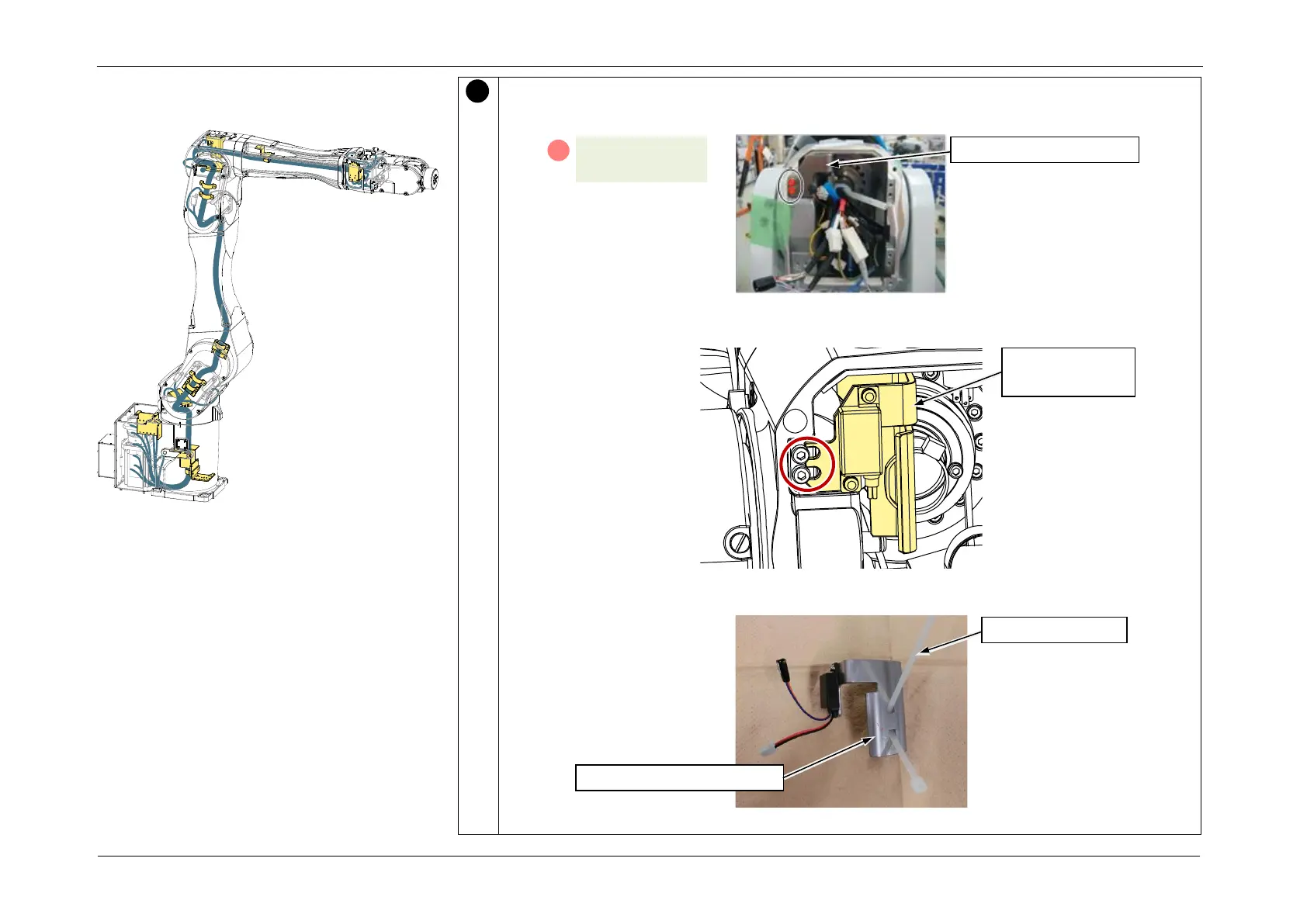

Secure the Cable Unit to Arm3.
1. Secure Arm3 cable fixing plate 2 to Arm3.
POINT
• Slide the cutout section on the Arm3 cable fixing plate 2, and secure with screws.
• After passing through the wire tie, install Arm3 cable fixing plate 2.
4
Arm3 cable fixing plate 2
Wire tie (AB300)
Arm3 cable fixing
plate 2
Arm3 cable fixing plate 2
S01: 2-M4x10
(4.0 +/- 0.2 N⋅m)
A
Installing the Cable Unit
