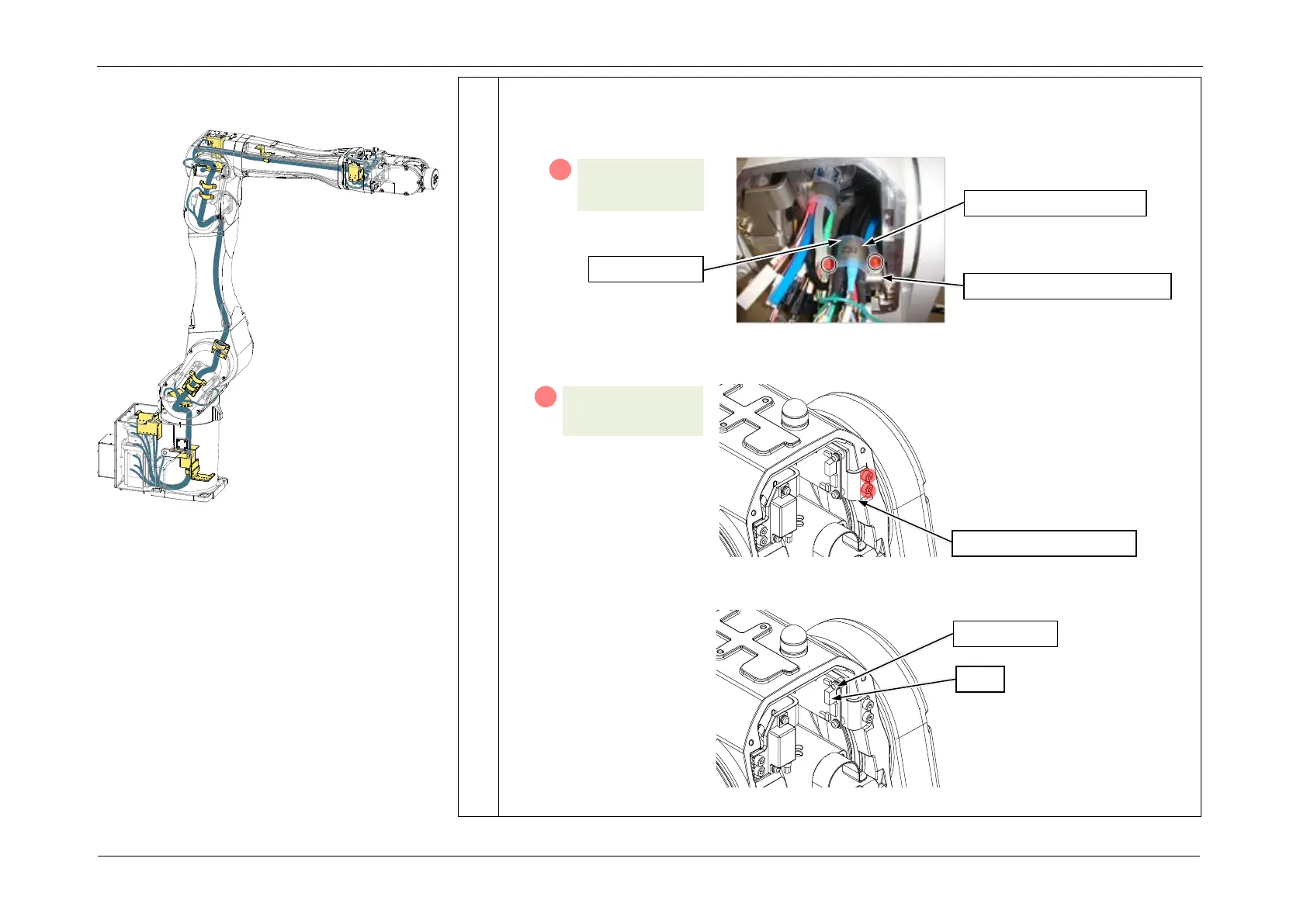

5. Secure the cables to Arm3 cable fixing plate 1 using the cable bracket (C3B).
POINT
Align the silicone tube and cable bracket (C3B) positions and install.
6. Install the gyro board 2 fixing plate.
7. Connect the connector (CN3) to gyro board 2.
Arm3 cable fixing plate 1
S01: 2-M3x6
(2.4 +/- 0.1 N⋅m)
A
Cable bracket (C3B)
Silicone tube
CN3
Gyro board 2
S01: 2-M4x10
(4.0 +/- 0.2 N⋅m)
A
Gyro board 2 fixing plate
Installing the Cable Unit
