C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-267 Rev.1

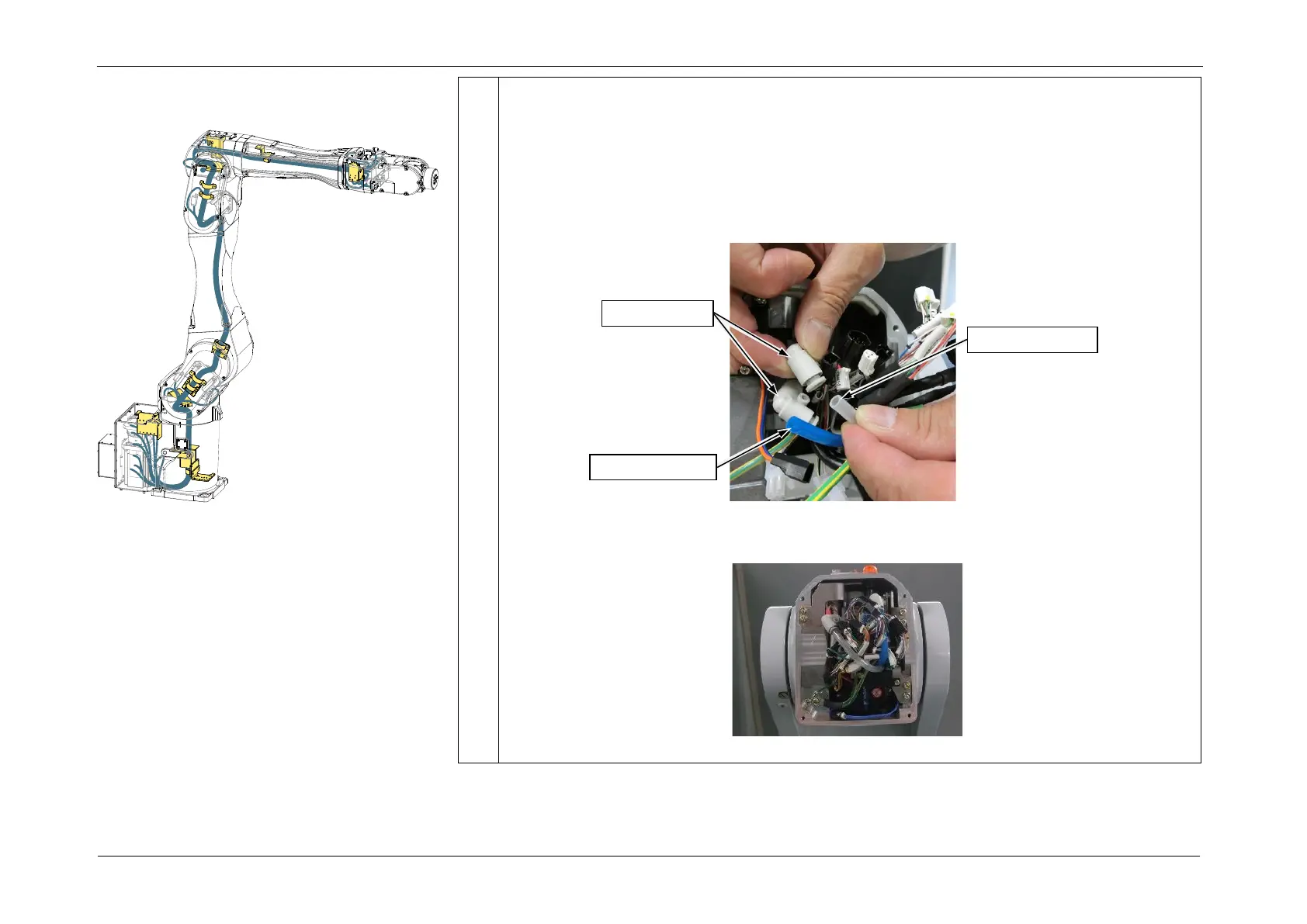

8. Connect the connectors (CN203, CN152, CN162, CN521, CN441, CN522, CN592,
LED) inside Arm3.
9. Connect the Arm4-side and base-side Air Tubes with air tube fittings.
POINT
• Connect Air Tubes of the same color.
• The air tube fittings removed from the Cable Unit before replacement will be used
again.
10. Connect the J4 Motor Connectors (CN141, CN341, CN440).
To Next Page
